Elitech EMG-40V Intelligent 4 Valves Digital manifold com 5 "tela de toque inteligente Elitech EMG-40V Intelligent 4 Valves Digital manifold com 5 "tela de toque inteligente
Em estoque

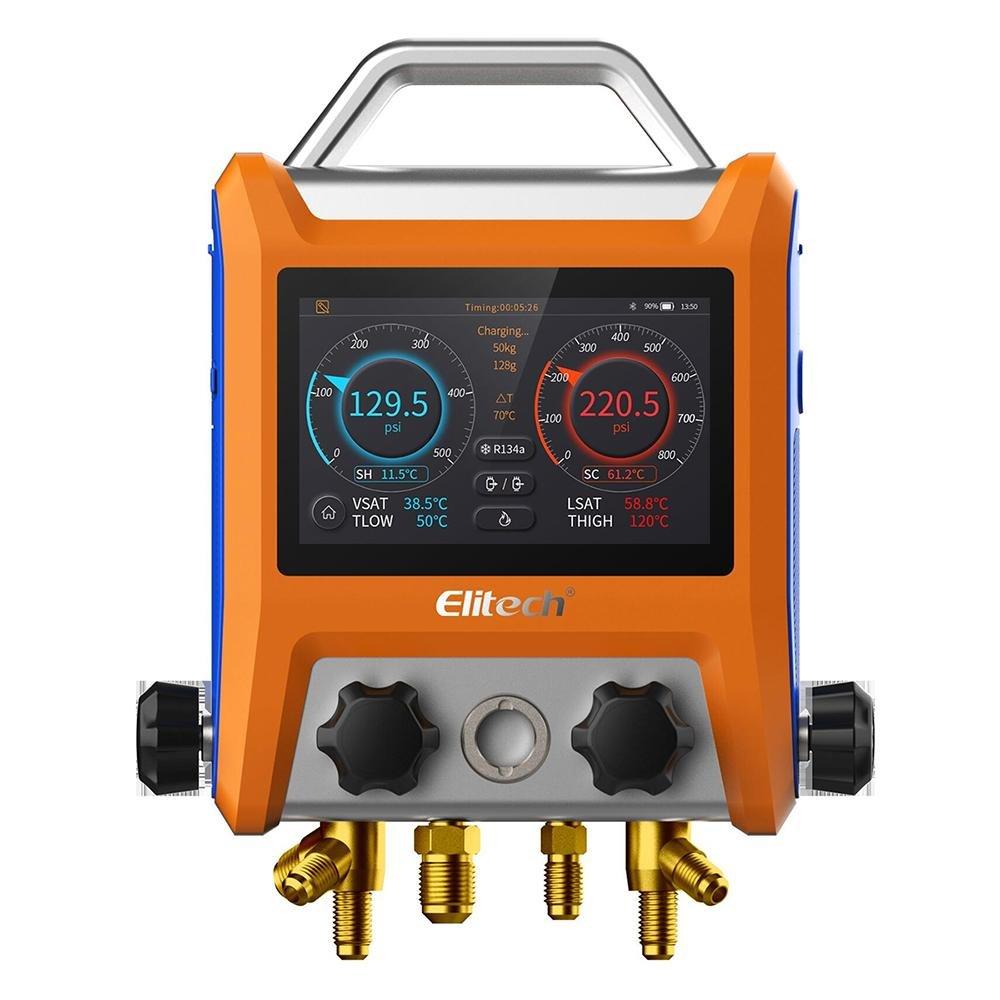

Elitech EMG-40V, um novo medidor digital inteligente, ajuda você a medir com rapidez e operar facilmente por meio de gráficos grandes e smartphones. Com sua tela de toque, os valores de pressão, vá...
Elitech EMG-40V, um novo medidor digital inteligente, ajuda você a medir com rapidez e operar facilmente por meio de gráficos grandes e smartphones. Com sua tela de toque, os valores de pressão, vácuo e temperatura estarão à sua disposição. É adequado para inspeção e manutenção diária do sistema HVAC / R.

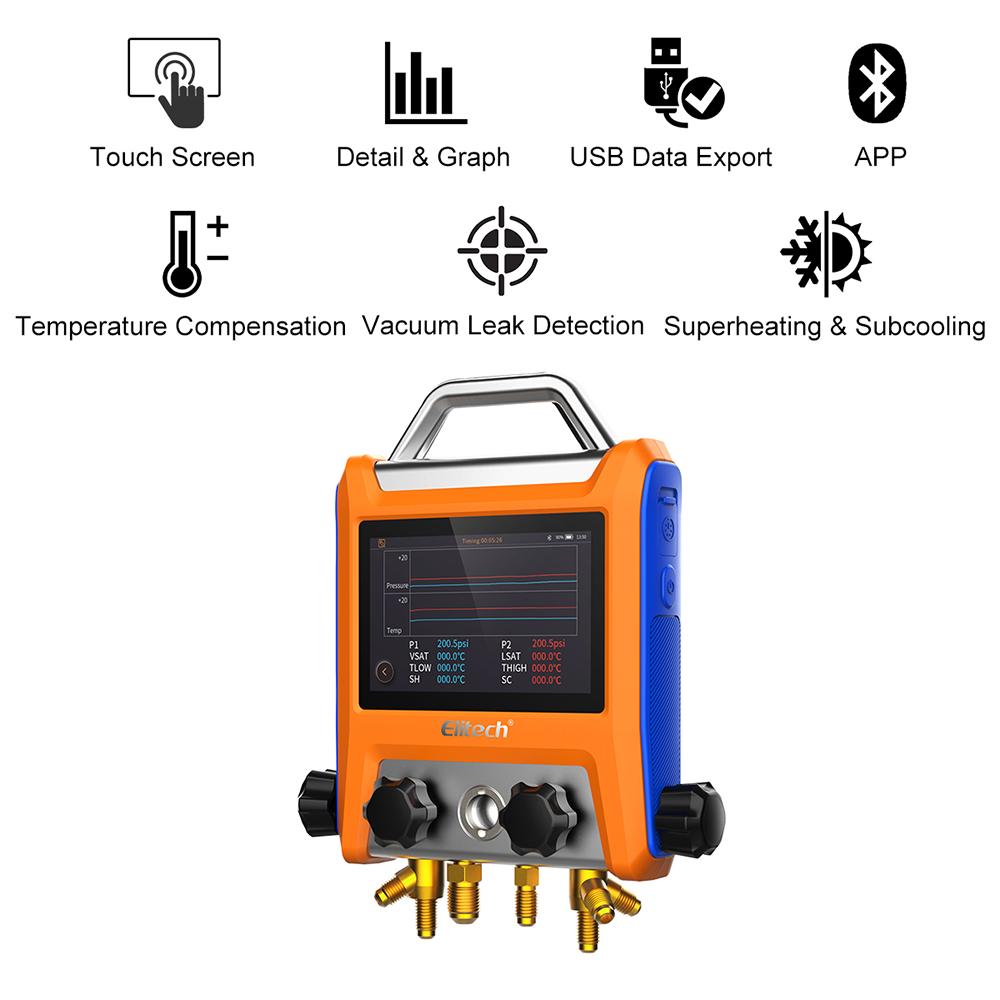

Feature
- Simple & easy operation with 5¡± smart touch screen, clear data, and graph display.
- Connect App by Bluetooth, data monitoring and analysis in real-time. Read and export data easily through USB. Record points: 100,000 points

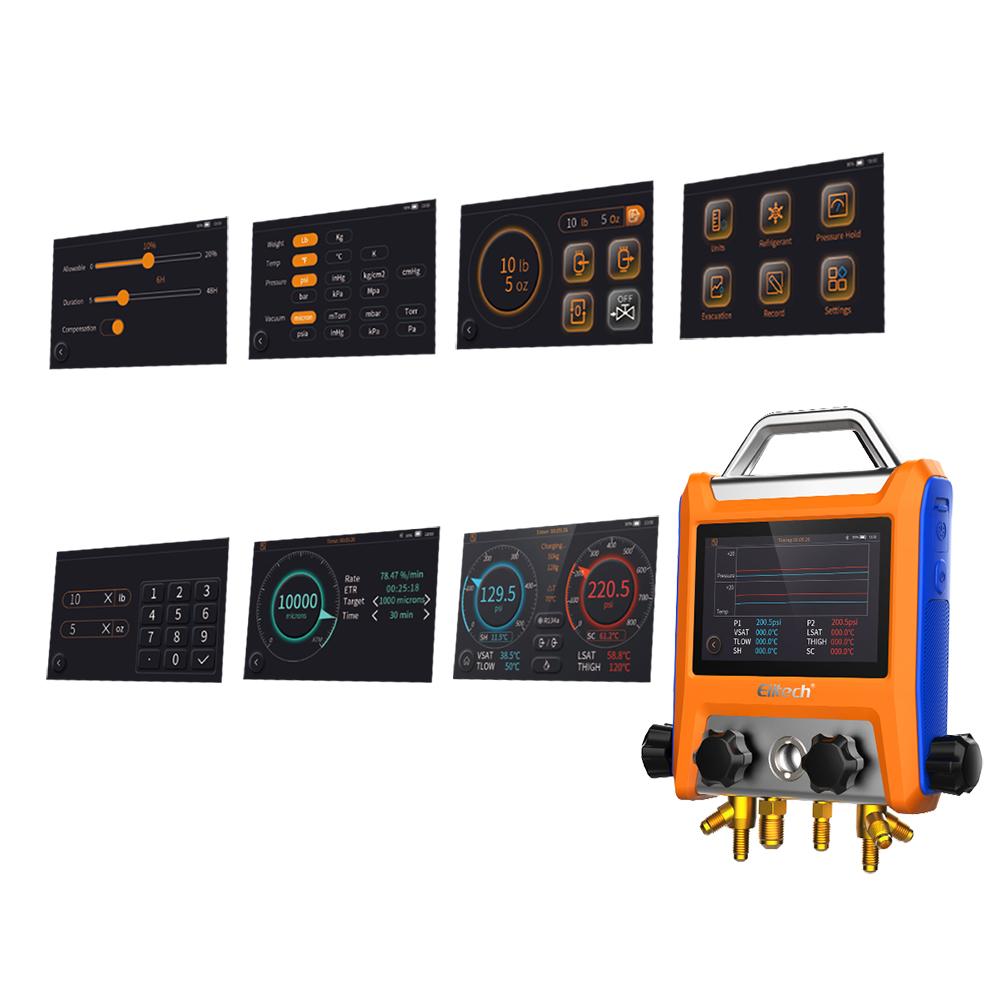

- Pressure, vacuum and temperature curve display, analysis intuitive and efficient
- Switch between heat and cooling mode without changing the refrigerant hoses. Automatic measurement of superheating and subcooling.
- Monitor system vacuum with leak detection, built-in temperature compensation to accurately monitor the pressure holding process.
- Service: 1-year warranty. 30 days free & easy return.
Especificacoes:

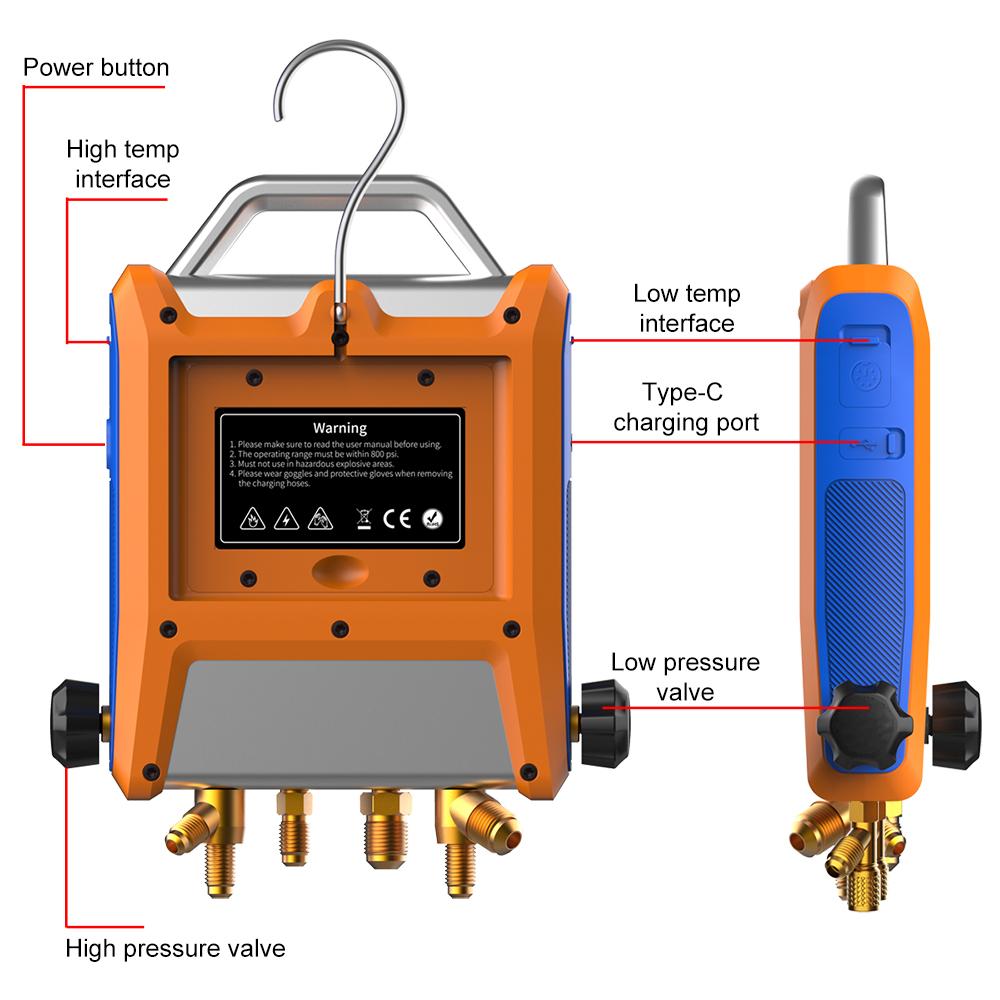

- Interface: 1/4 SAE*3 & 3/8 SAE*1
- Interface do sensor: PS/2*2 ( left interface is temperature & vacuum probe multiplexing)
- Interface USB: Type-C * 1 (para exportação e carregamento de dados)
- Dimensões: 254 * 215 * 71 mm
- Peso: 3,8 lb / 1,73 kg
- Temperatura de armazenamento:-20~60℃/-4~140℉
- Temperatura de armazenamento: -40~80℃/-40~176℉
- Parâmetro de carregamento: 5V2A
- Capacidade da bateria: 5000mAh
- Tempo de gravação: 500h
Parâmetros técnicos
Pressure(High-Pressure Port and Low-Pressure Port )
- Faixa de medição: -14.5~800psi/-1.0~56.2kg/cm2/-1.0~55.2bar/-0.1~5.5MPa
- Precisão: 0.5%FS
- Resolução: 0.1psi/0.1kg/cm2/0.1bar/0.01MPa
- Unidade de pressão: psi,inHg,kg/cm2,cmHg,bar,kPa,MPa
- Frequência de amostragem de dados: 0,5S
- Sobrecarga:1000psi/70kg/cm2/69bar/6.8MPa
Temperature Clamp (High-Pressure Port and Low-Pressure Port )
- Faixa de temperatura: -40℉-300℉/ -40℃-150℃
- Precisão: ±0.1℃/±0.18℉
- Resolução: 0.1℉/℃
- Unidade de temperatura:¨℉, ℃
Vacuum
- Faixa: 0-19000 mícrons
- Precisão: 0-10000 mícrons, ± 10% da leitura / ± 10 mícrons; 10000-19000 mícrons, ± 20% da leitura
Unidade de vácuo inHg, Torr, psia, mbar, mTorr, Pa, micron, kPa - Unidade de vácuo: inHg, Torr, psia, mbar, mTorr, Pa, micron, kPa
- Resolução:0-400, 1 mícron; 400-3000, 10 mícrons; 3000-10000, 100 mícrons; 10000-19000, 250 mícrons;
-
Interface: 1 / 4SAE e 1 / 4SAET
Lista de Refrigerantes
R113 R114 R115 R116 R12 R123 R1233ZD R1234ZE R1234YF R124 R125 R13 R134a R14 R141B R142B R143A R152A R170 R22 R23 R236FA R245FA R290 R32 R401A R401B R401C R402A R402B R403B R404A R406A R407A R407B R407C R407D R407F R408A R409A R410A R410B R412A R413A R414A R414B R416A R417A R417C R420A R421A R421B R422A R422B R422C R422D R424A R426A R427A R428A R429A R434A R437A R438A R441A R443A R448A R449A R450A R452A R452B R453A R454A R454B R455A R458A R500 R502 R503 R507A R508A R508B R514A R600 R600a R601a R718 R744

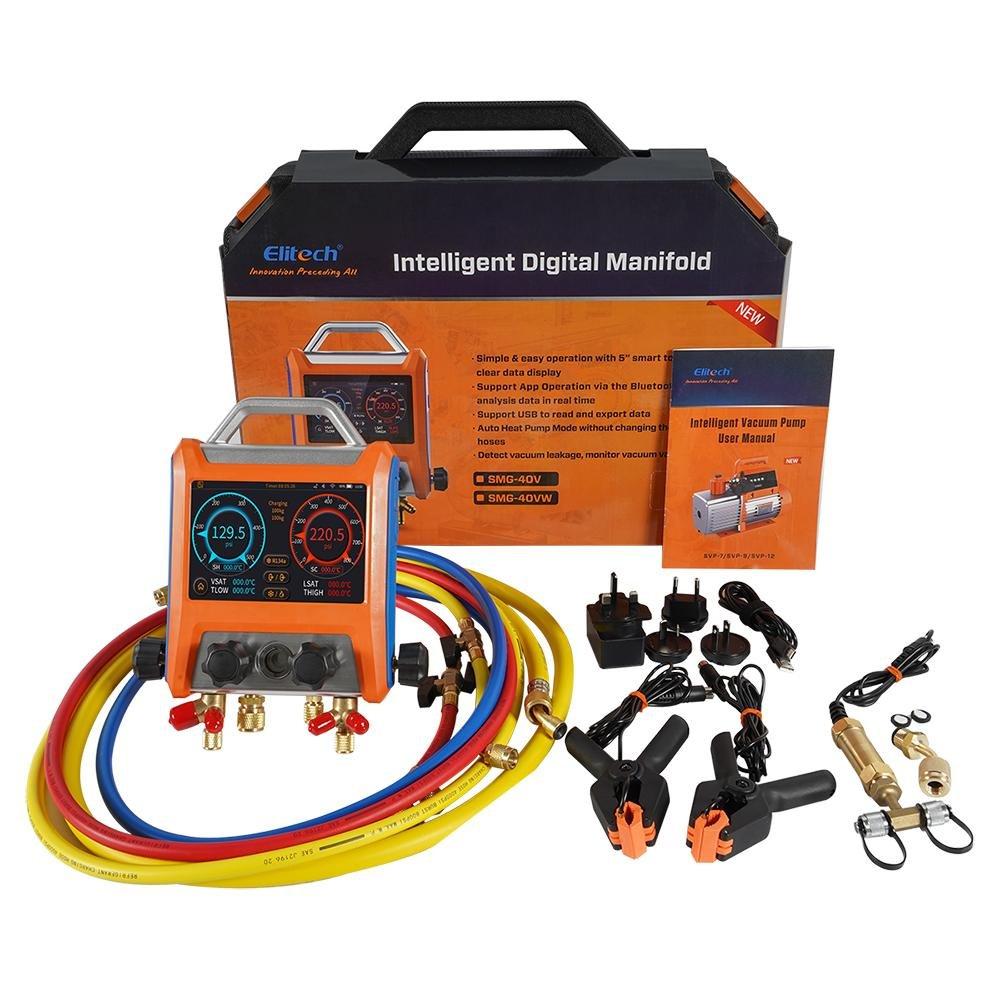

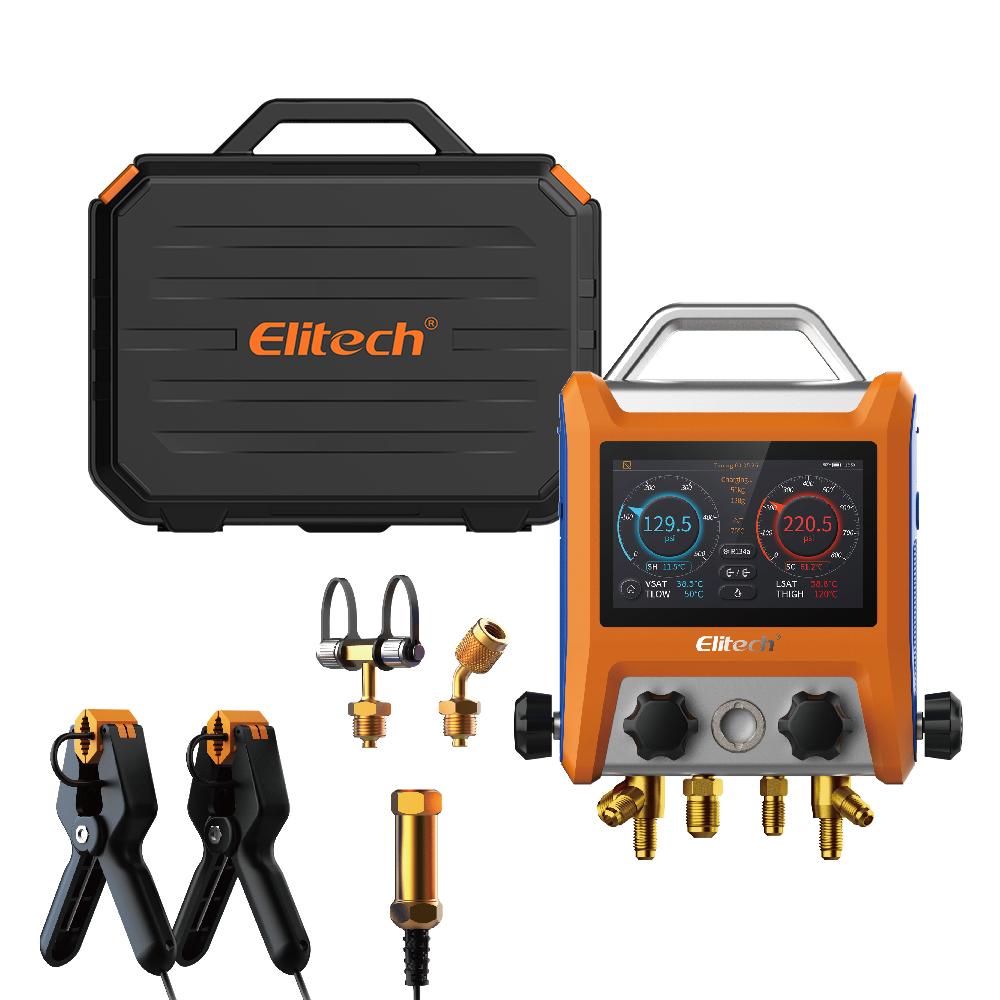

Lista de embalagem
- 1 x transmissor de vácuo (junta em T)
- 2 x braçadeira de temperatura
- 1 x junta dobrada

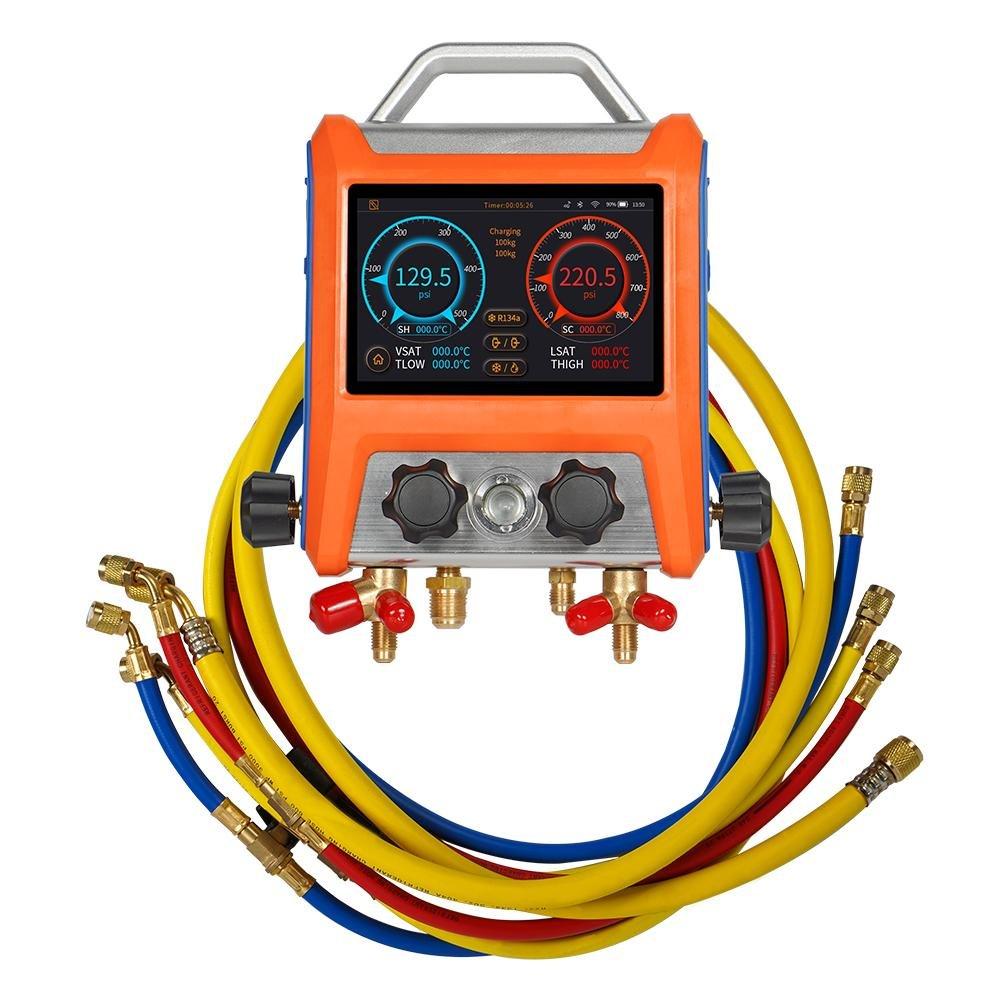

- 3 x mangueira de refrigerante
- 1 x adaptador de energia universal
- 1 cabo USB-C
- 1 x manual do usuário (download)
- 1 x caixa durável portátil
Elitech EMG-40V, um novo medidor digital inteligente, ajuda você a medir com rapidez e operar facilmente por meio de gráficos grandes e smartphones. Com sua tela de toque, os valores de pressão, vácuo e temperatura estarão à sua disposição. É adequado para inspeção e manutenção diária do sistema HVAC / R.
Feature
- Simple & easy operation with 5¡± smart touch screen, clear data, and graph display.
- Connect App by Bluetooth, data monitoring and analysis in real-time. Read and export data easily through USB. Record points: 100,000 points
- Pressure, vacuum and temperature curve display, analysis intuitive and efficient
- Switch between heat and cooling mode without changing the refrigerant hoses. Automatic measurement of superheating and subcooling.
- Monitor system vacuum with leak detection, built-in temperature compensation to accurately monitor the pressure holding process.
- Service: 1-year warranty. 30 days free & easy return.
Especificacoes:
- Interface: 1/4 SAE*3 & 3/8 SAE*1
- Interface do sensor: PS/2*2 ( left interface is temperature & vacuum probe multiplexing)
- Interface USB: Type-C * 1 (para exportação e carregamento de dados)
- Dimensões: 254 * 215 * 71 mm
- Peso: 3,8 lb / 1,73 kg
- Temperatura de armazenamento:-20~60℃/-4~140℉
- Temperatura de armazenamento: -40~80℃/-40~176℉
- Parâmetro de carregamento: 5V2A
- Capacidade da bateria: 5000mAh
- Tempo de gravação: 500h
Parâmetros técnicos
Pressure(High-Pressure Port and Low-Pressure Port )
- Faixa de medição: -14.5~800psi/-1.0~56.2kg/cm2/-1.0~55.2bar/-0.1~5.5MPa
- Precisão: 0.5%FS
- Resolução: 0.1psi/0.1kg/cm2/0.1bar/0.01MPa
- Unidade de pressão: psi,inHg,kg/cm2,cmHg,bar,kPa,MPa
- Frequência de amostragem de dados: 0,5S
- Sobrecarga:1000psi/70kg/cm2/69bar/6.8MPa
Temperature Clamp (High-Pressure Port and Low-Pressure Port )
- Faixa de temperatura: -40℉-300℉/ -40℃-150℃
- Precisão: ±0.1℃/±0.18℉
- Resolução: 0.1℉/℃
- Unidade de temperatura:¨℉, ℃
Vacuum
- Faixa: 0-19000 mícrons
- Precisão: 0-10000 mícrons, ± 10% da leitura / ± 10 mícrons; 10000-19000 mícrons, ± 20% da leitura
Unidade de vácuo inHg, Torr, psia, mbar, mTorr, Pa, micron, kPa - Unidade de vácuo: inHg, Torr, psia, mbar, mTorr, Pa, micron, kPa
- Resolução:0-400, 1 mícron; 400-3000, 10 mícrons; 3000-10000, 100 mícrons; 10000-19000, 250 mícrons;
-
Interface: 1 / 4SAE e 1 / 4SAET
Lista de Refrigerantes
R113 R114 R115 R116 R12 R123 R1233ZD R1234ZE R1234YF R124 R125 R13 R134a R14 R141B R142B R143A R152A R170 R22 R23 R236FA R245FA R290 R32 R401A R401B R401C R402A R402B R403B R404A R406A R407A R407B R407C R407D R407F R408A R409A R410A R410B R412A R413A R414A R414B R416A R417A R417C R420A R421A R421B R422A R422B R422C R422D R424A R426A R427A R428A R429A R434A R437A R438A R441A R443A R448A R449A R450A R452A R452B R453A R454A R454B R455A R458A R500 R502 R503 R507A R508A R508B R514A R600 R600a R601a R718 R744
Lista de embalagem
- 1 x transmissor de vácuo (junta em T)
- 2 x braçadeira de temperatura
- 1 x junta dobrada
- 3 x mangueira de refrigerante
- 1 x adaptador de energia universal
- 1 cabo USB-C
- 1 x manual do usuário (download)
- 1 x caixa durável portátil
