Elitech PGW-500 Bluetooth Digital Pressure Gauge HVAC 87 Refrigerants Elitech PGW-500 Bluetooth Digital Pressure Gauge HVAC 87 Refrigerants

Em estoque
Key Feature: Free App (iOS and Android): Settable high/low-pressure alarm, you can receive remote notifications when readings move beyond a pre-set value. The data can be saved and exported in E...
R$ 423,93
R$ 423,93

Elitech PGW-500 Wireless Digital Pressure Gauge with Temperature App Alerts for HVAC System IP65 Waterproof 0-500 PSI 1/8 NPT

Key Feature:

  • Free App (iOS and Android): Settable high/low-pressure alarm, you can receive remote notifications when readings move beyond a pre-set value. The data can be saved and exported in Excel and PDF format.
  • Offline Record: The wireless Bluetooth pressure digital gauge records data offline and transmit the current pressure value to the app automatically which helps you to search for data at any time and anywhere.
  • Multiple Refrigerants: Support the saturated temperature-pressure comparison table more of 87 kinds of refrigerants.
  • 7 Units Available: psi,kg/m.,cmHg,inHg,bar,Kpa,Mpa
  • Automatic Calculation: Super-heat and sub-cool can be calculated automatically to reduce the error by manual calculation, and get this parameter directly.
  • Waterproof: The pressure gauge is made by ABS and PPT and the waterproof level is IP65.

APP Functions:

  • Real-time display of current pressure value;
  • Auto calculation of the degree of super-heat and sub-cool;
  • Various types of refrigerants are available;
  • Settable high/low-pressure alarm;
  • Parameters:

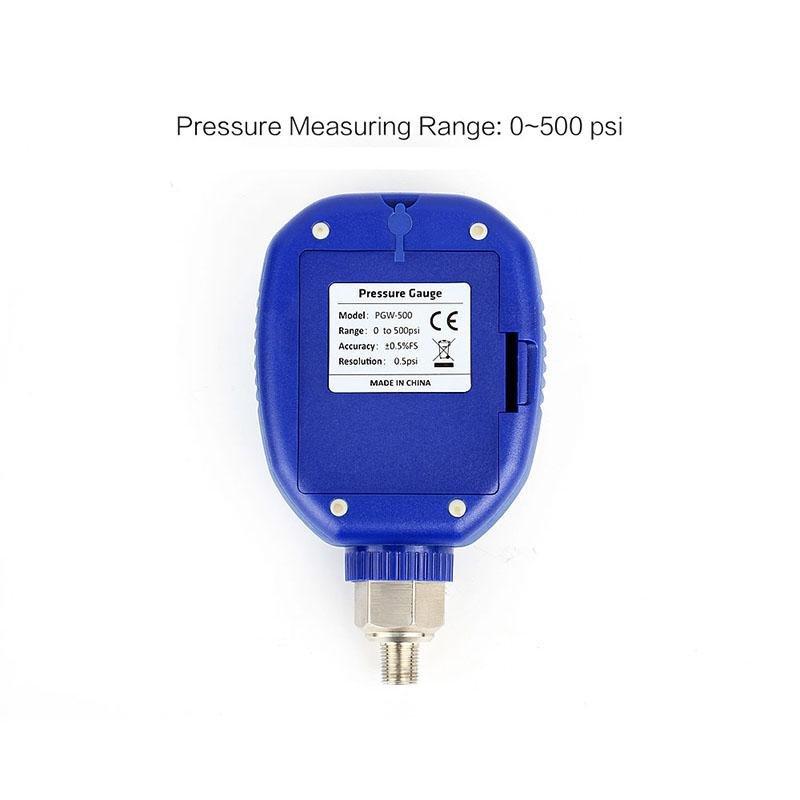

  • Pressure measuring range: 0-500psi
  • Resolution: 0.5psi
  • Accuracy: ¡À0.5% FS
  • Measurement units: psi,kg/cm2, cmHg, inHg, bar, kPa, MPa
  • Offline Records: 9000 readings
  • Battery life: 160 hours
  • Maximum overload pressure: 750psi
  • Operating temperature: -17.8¡ãC-60¡ãC(0¡ãF-140¡ãF)
  • Fitting: 1/8" Male NPT

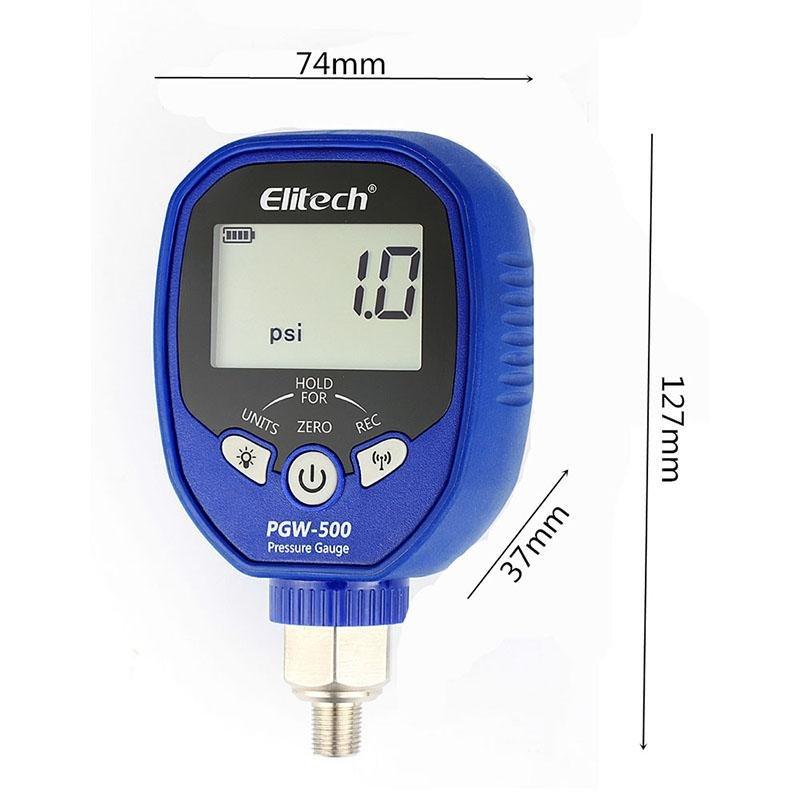

  • Dimension: 127mmx73mmx37mm

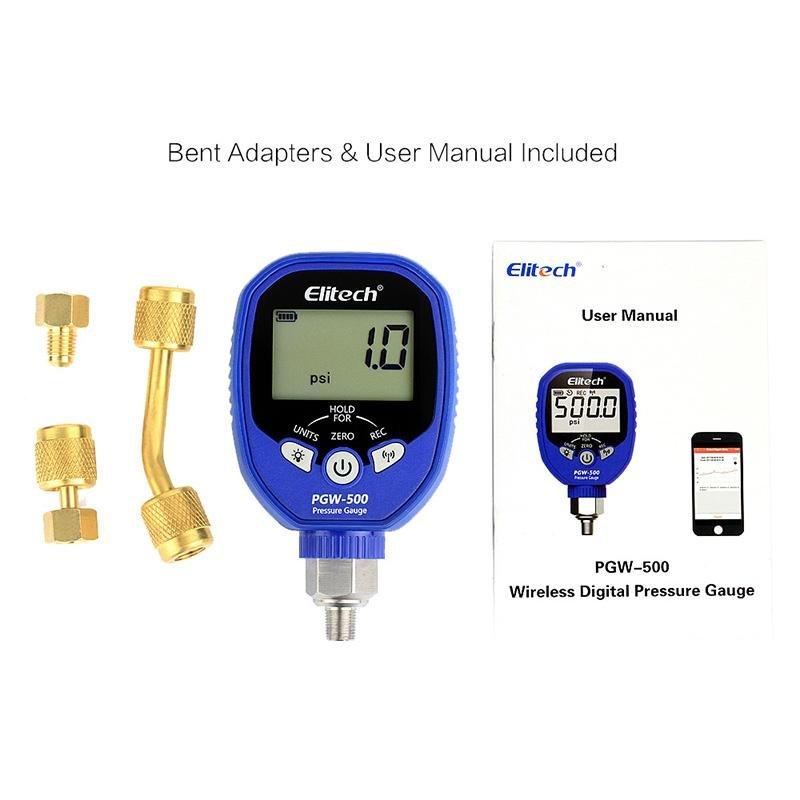

What's in the box:

  • 1 X PGW500
  • 3 X AA Alkaline Battery
  • 1 x User Manual
  • 1 x 1/4¡¯¡¯?Male Adapter
  • 1 x 1/4¡¯¡¯?Female Adapter
  • 1 x Bent Adapter

Warning:

  • Please use the gauge in a specified environment to avoid error or damage of the sensor;
  • Please do not use chemical solvent or corrosive to clean the gauge;
  • Please do not disassemble the gauge;
  • Remove the batteries if the gauge is not in used for a long time to avoid batteries leakage corrodes the gauge. The batteries included are not rechargeable. Please do not charge them.

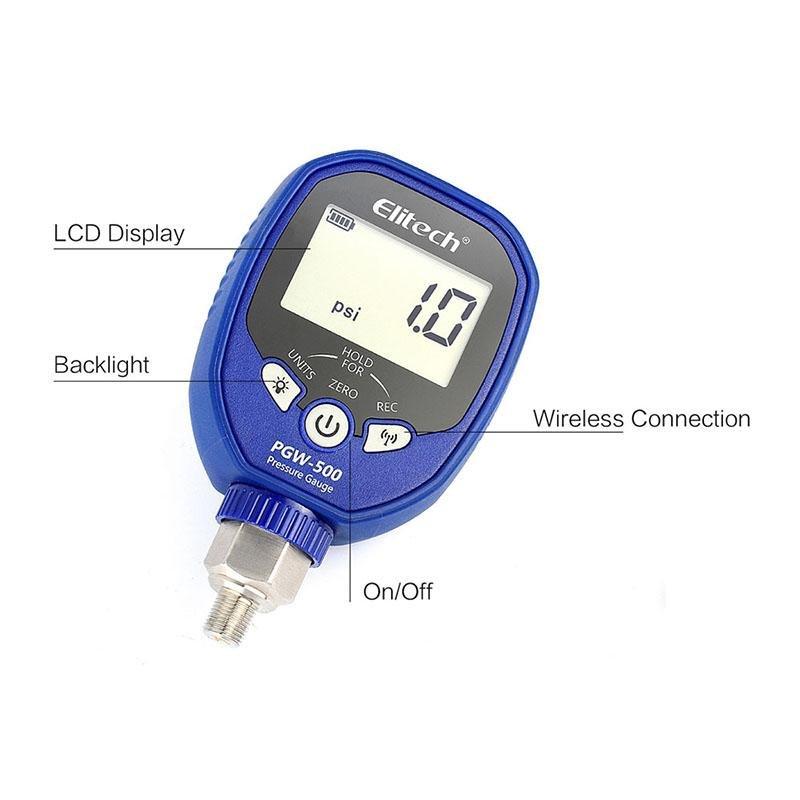

Operation?Introduction:

  1. Before the gauge accesses the system, press the power button? ?to?power on. The gauge displays P500. Then it will conduct self-test until pressure value is displayed.
  2. After the gauge is turned on, press and hold??to make the screen display O.
  3. Note: It is possible to zero when the pressure value is below 10psi.
  4. Make sure interface type matches with the access system. If not, please use the included adapter.
  5. Press and release??to turn on the backlight. The backlight will be auto off after two minutes idle. Press??to turn off backlight directly.
  6. Press and hold ?to?switch measurement units.
  7. Press and release??to enable a wireless connection. Press it again to disable the wireless connection.
  8. Press and hold??until REC" appears in the screen to enable record function. Press and hold??again to disable this function.

140 Refrigerant Profiles:

  • R11,R12,R13,R14,R21,R22,R23,R32,R40,R41,
  • R50,R113,R114,R115,R116,R123,R124,R125,R134a,
  • R141B,R142B,R143A,R152A,R161,R170,R218,R227EA,
  • R236EA,R236FA,R245FA,R290,R401A,R401B,R401C,R402A,
  • R402B,R403A,R403B,R404A,R406A,R407A,R407B,R407C,R407D,
  • R407E,R407F,R408A,R409A,R409B,R410A,R410B,R412A,R413A,R414A,
  • R414B,R415B,R416A,R417A,R417B,R417C,R419A,R419B,R420A,R421A,
  • R421B,R422A,R422B,R422C,R422D,R422E,R423A,R424A,R425A,R426A,R427A,
  • R428A,R429A,R430A,R431A,R432A,R433A,R433B,R433C,R434A,R435A,R436A,
  • R436B,R437A,R438A,R439A,R440A,R441A,R442A,R443A,R444A,R444B,R445A,
  • R446A,R447A,R448A,R449A,R449B,R450A,R451A,R451B,R452A,R452B,R452C,
  • R453A,R454A,R454B,R454C,R455A,R456A,R457A,R458A,R500,R502,R503,R504,
  • R507A,R508A,R508B,R509A,R510A,R512A,R600,R600a,R601,R601a,R717,R718,
  • R720,R728,R732,R740,R744,R1233ZD,R1234YF,R1234ZE

Comparison Chart:
