Elitech HVAC Tools Set - Intelligent 7 CFM 2 Stage Vacuum Pump SVP-7 * Digital Manifold Gauge PT-500&PT-800 * Refrigerant Hoses 3 Packs Elitech HVAC Tools Set - Intelligent 7 CFM 2 Stage Vacuum Pump SVP-7 * Digital Manifold Gauge PT-500&PT-800 * Refrigerant Hoses 3 Packs
Em estoque
Elitech HVAC tools set is set to facilitate the selection process of HVAC tools.

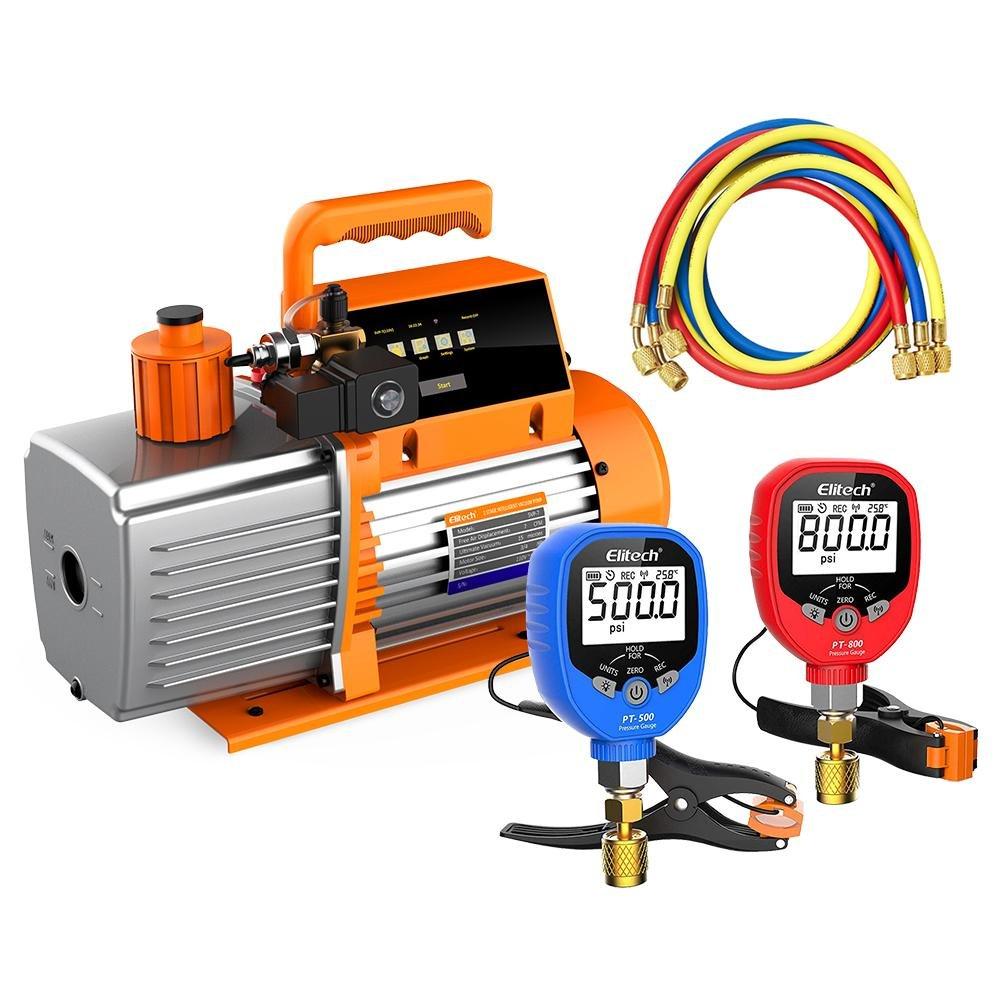

This bundle contains 3 items:1 of Elitech SVP-7
Intelligent Control and Prediction: Control motor and solenoid valv...
Elitech HVAC tools set is set to facilitate the selection process of HVAC tools.
This bundle contains 3 items:

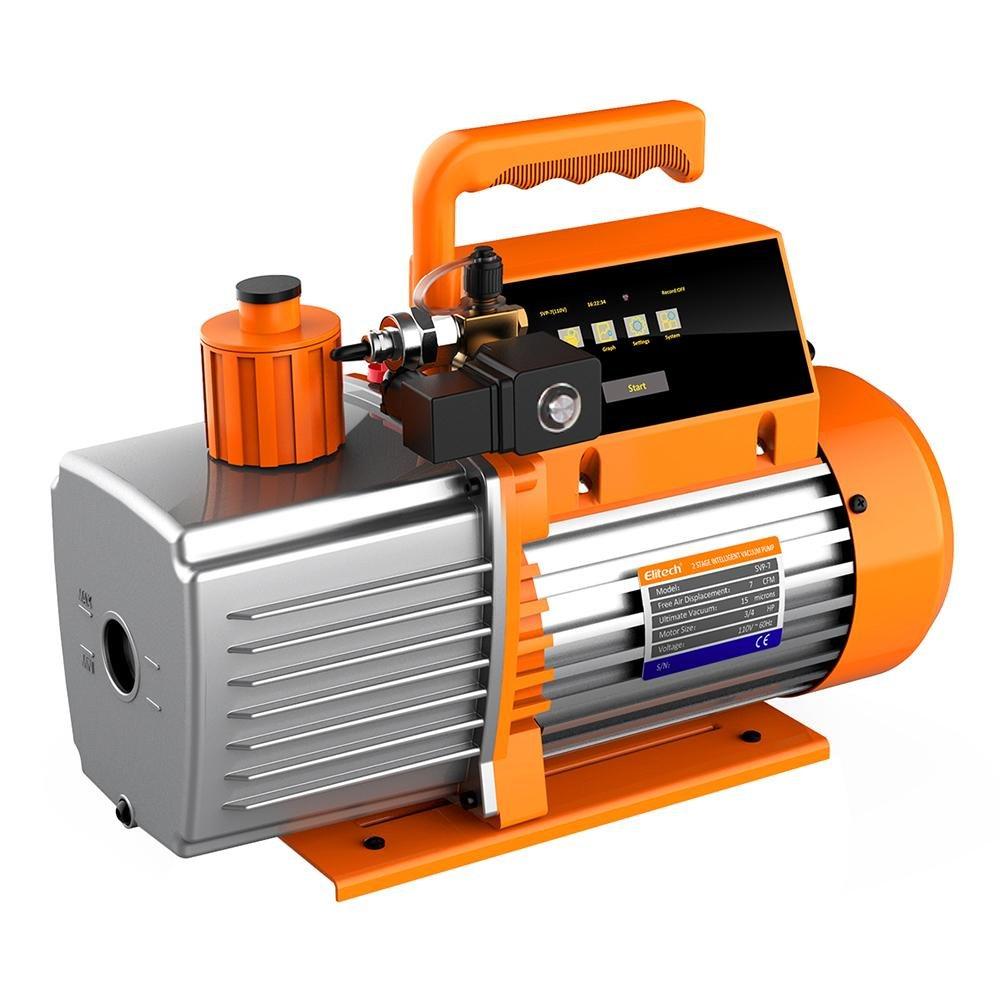

1 of Elitech SVP-7
- Intelligent Control and Prediction: Control motor and solenoid valve automatically, determine the system capacity according to the vacuum data to understand the volume of recharging refrigerants.
- Vacuum Change in Graph: View the vacuum process in real-time; Predict the leakage status and job completion time
- Monitoring data via App during the whole process of vacuuming: Monitor data via APP during the entire vacuum process, set your desired units and log interval
- Smart, Efficient & Reliable: Constantly vacuum control, oil tank and motor temperature monitoring

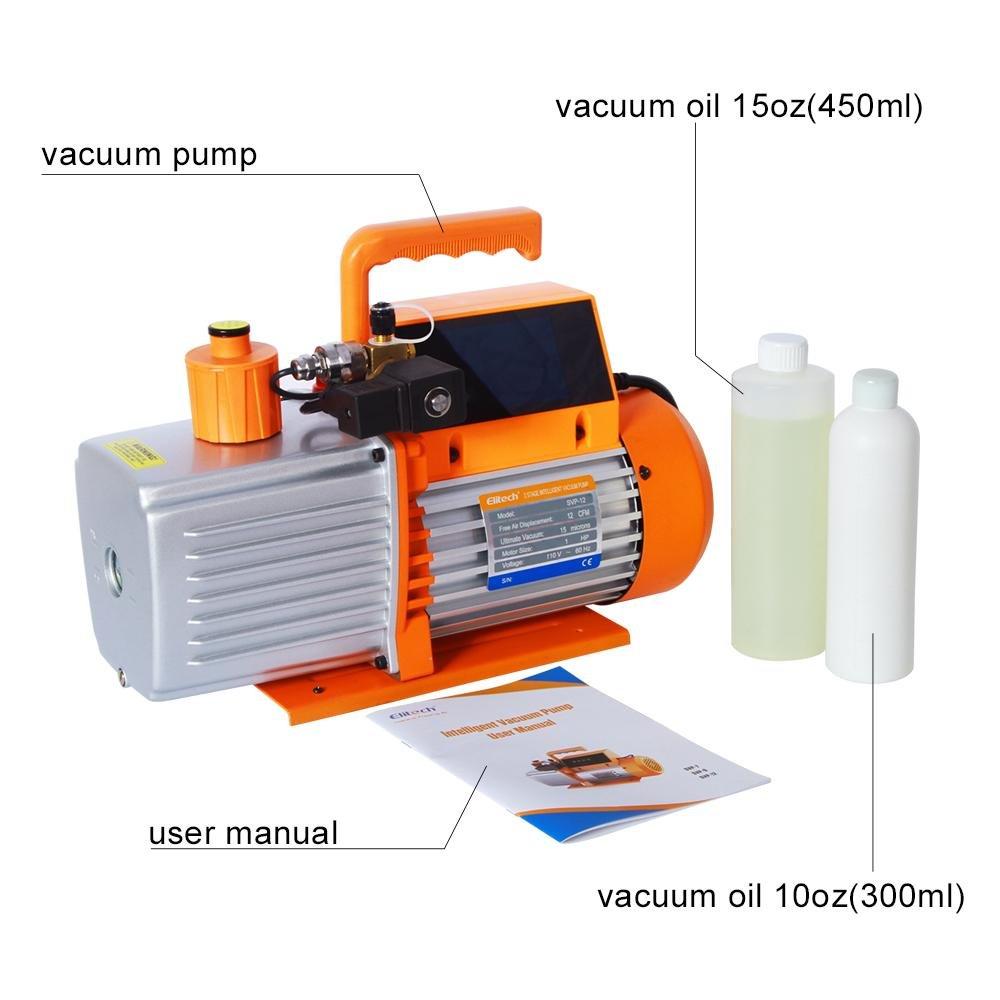

- Easy to Use: 4" touch screen, monitoring via App. Comes with 2 bottles of vacuum oil (300ml+450ml)

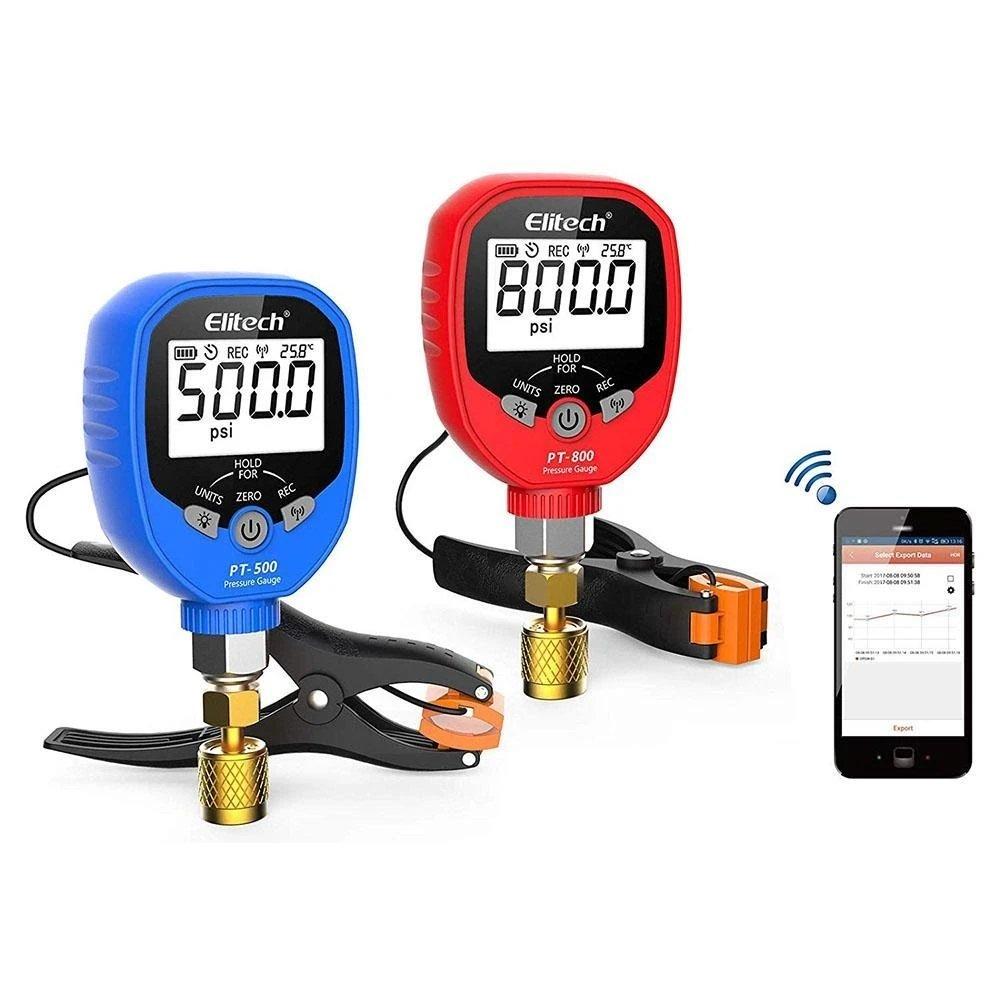

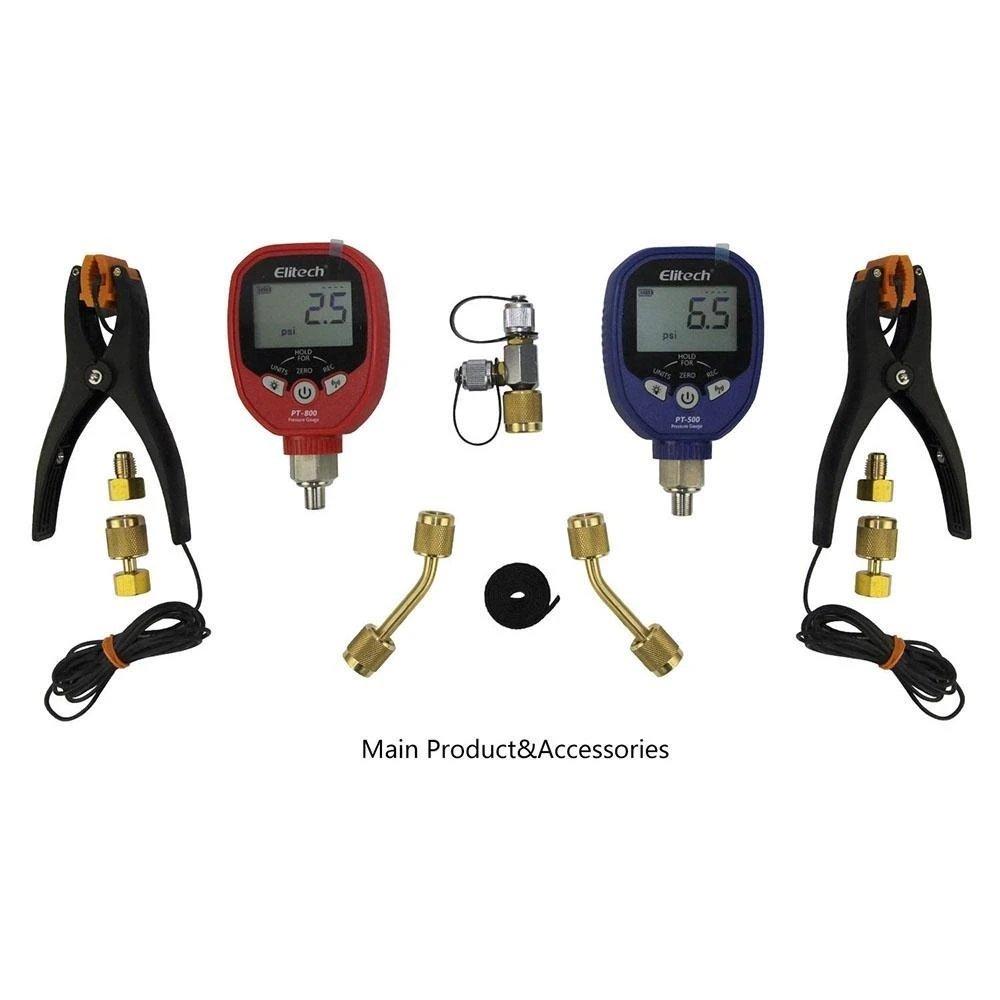

1 of Elitech PT-500 & PT-800
- Real-time display of current pressure value
- Auto calculation of the degree of super-heat and sub-cool
- Settable high / low pressure alarm with an App notification
- Data report and graph in Excel and PDF formats.
- Wireless Bluetooth transmission distance: 98.5 feet
- Remote unit conversion: psi, inHg, kg/cm2, cmHg, bar, kPa, Mpa
1 of Elitech Hose Set 3 Pack
- Length: 59inch/150cm
- Screw thread: 1/4'' SAE - 1/4'' SAE
- Working pressure: 800PSI
- Burst Pressure: 4000PSI
Elitech smart vacuum pump carries a series of innovative features such as a very sensitive touch screen, a safe stop and start mode, leakage level, and the Elitech tools app that can be hooked up with the pump. To increase the work performance is recommended to use tools of the same line in order to increase precision and accuracy.?
Specifications:

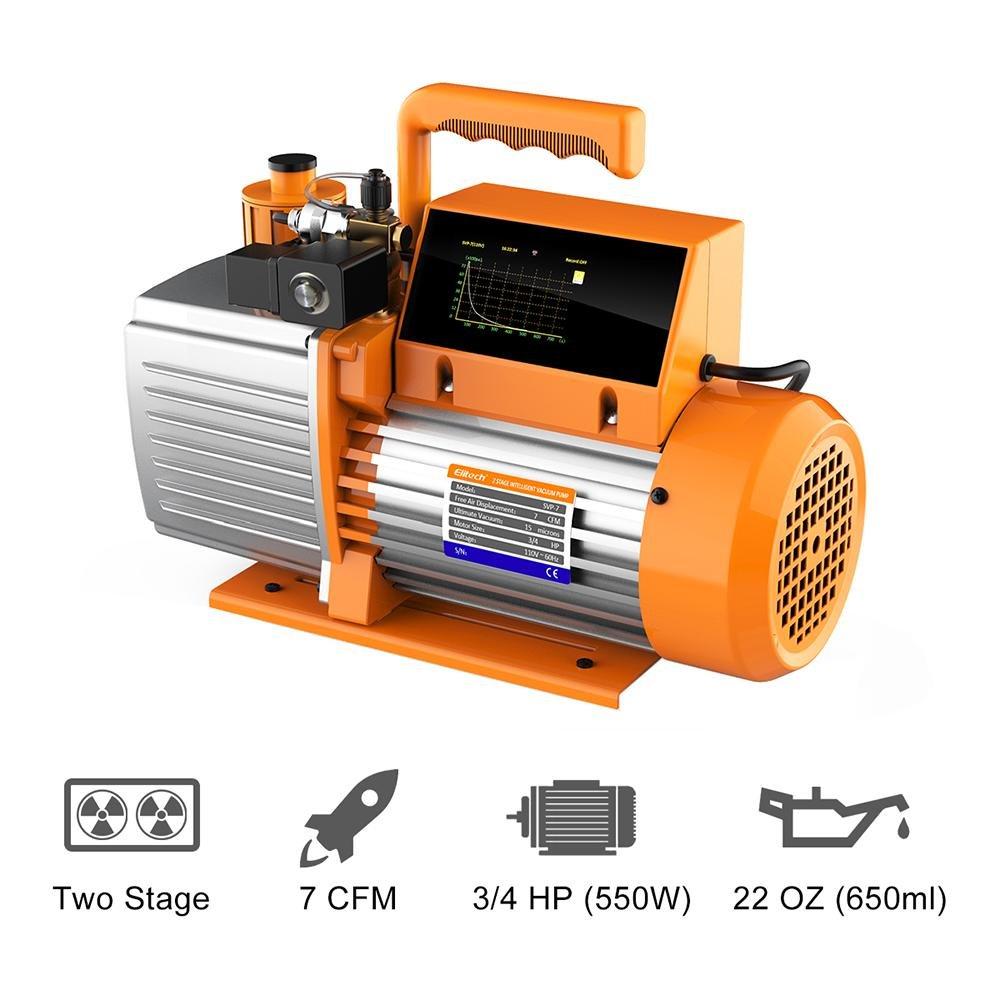

Vacuum Pump SVP-7 :
| ?Power supply:? | 110V/60HZ |
| Motor: | AC Induction Motor |
| Speed regulation: | Fixed Speed |
| Vacuum accuracy: | ¡À10% of Reading / ¡À10 microns(@1-10000microns) ¡À20% of Reading(@10000-19000microns) |
| Working environment:? | 5¡ãC~40¡ãC (41¡ãF~104¡ãF) |
| Transmission distance:? | 30ft /10m |
| Limit vacuum:? | 15 micron |
| Pumping rate: | 7 CFM (3 L/S) |
| Motor power:? | 3/4 HP (550 W) |
| Fuel volume:? | 22 oz (650 ml) |

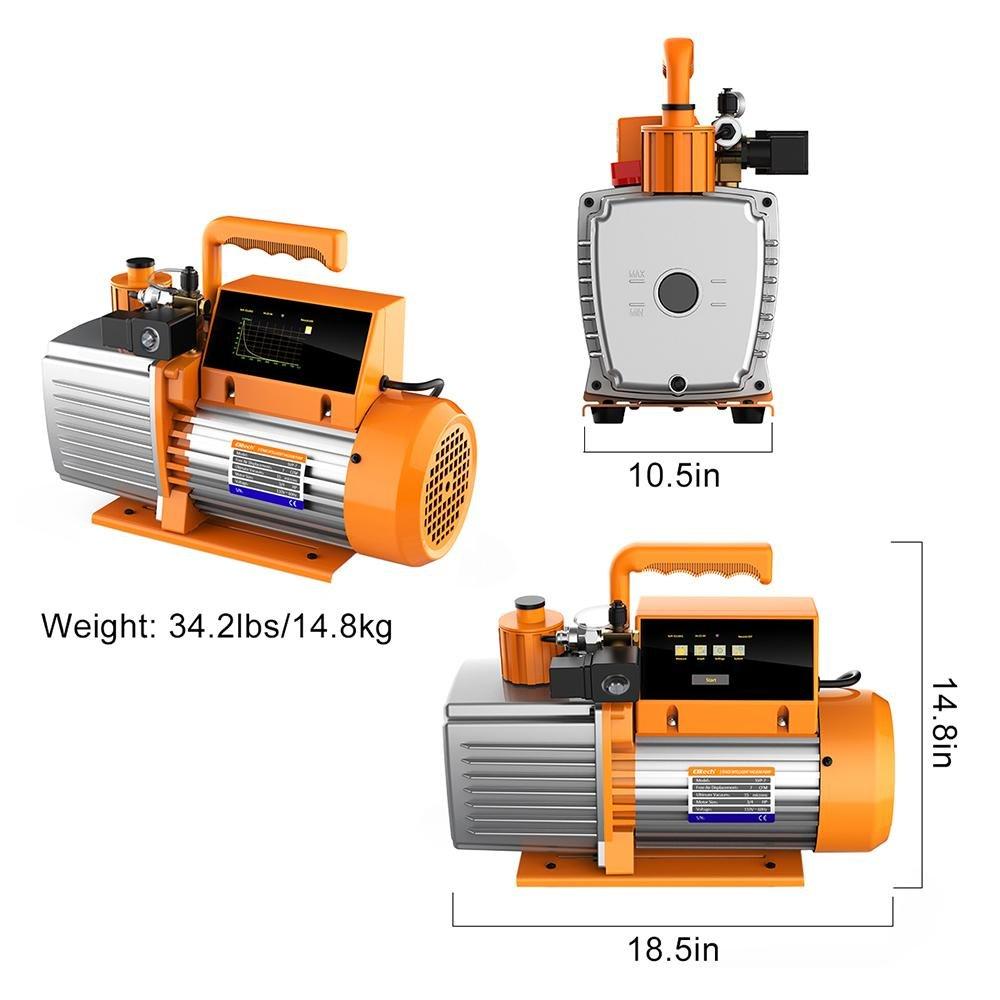

| Overall dimension:? | 18.5inx10.5inx14.8in (470mm*267mm*380mm) |
| Weight: | 34.2 lbs / 14.5 kg |
| Air inlet: | 1/4 SAE |
| User Manual:? | Download? |
Wireless HVAC Digital Manifold Gauge Set PT-500&PT-800:
| ?Measuring range:? | PT-500(0-500 psi); PT-800(0-800 psi) |
| Resolution: | 0.5psi |
| Accuary: | ¡À0.5%FS |
| U.M.: | psi,kg/cm2,cmHg,inHg,bar,kPa, Mpa |
| Memory capacity:? | 7000 readings |
| Power supply:? | 3AA batteries |
| In-use time:? | 600h |
| Max overload pressure: | 750psi;1000psi |
| Operating temperature:- | -17.8¡æ~60¡棨0¨H-140¨H£© |
| Fitting: | 1/8 NPT |
| Product size(IN): | 5*3*1.46 |
| Wireless transmission distance:? | 30m |
| User Manual? | Download? |
Elitech HVAC tools set is set to facilitate the selection process of HVAC tools.
This bundle contains 3 items:
1 of Elitech SVP-7
- Intelligent Control and Prediction: Control motor and solenoid valve automatically, determine the system capacity according to the vacuum data to understand the volume of recharging refrigerants.
- Vacuum Change in Graph: View the vacuum process in real-time; Predict the leakage status and job completion time
- Monitoring data via App during the whole process of vacuuming: Monitor data via APP during the entire vacuum process, set your desired units and log interval
- Smart, Efficient & Reliable: Constantly vacuum control, oil tank and motor temperature monitoring
- Easy to Use: 4" touch screen, monitoring via App. Comes with 2 bottles of vacuum oil (300ml+450ml)
1 of Elitech PT-500 & PT-800
- Real-time display of current pressure value
- Auto calculation of the degree of super-heat and sub-cool
- Settable high / low pressure alarm with an App notification
- Data report and graph in Excel and PDF formats.
- Wireless Bluetooth transmission distance: 98.5 feet
- Remote unit conversion: psi, inHg, kg/cm2, cmHg, bar, kPa, Mpa
1 of Elitech Hose Set 3 Pack
- Length: 59inch/150cm
- Screw thread: 1/4'' SAE - 1/4'' SAE
- Working pressure: 800PSI
- Burst Pressure: 4000PSI
Elitech smart vacuum pump carries a series of innovative features such as a very sensitive touch screen, a safe stop and start mode, leakage level, and the Elitech tools app that can be hooked up with the pump. To increase the work performance is recommended to use tools of the same line in order to increase precision and accuracy.?
Specifications:
Vacuum Pump SVP-7 :
| ?Power supply:? | 110V/60HZ |
| Motor: | AC Induction Motor |
| Speed regulation: | Fixed Speed |
| Vacuum accuracy: | ¡À10% of Reading / ¡À10 microns(@1-10000microns) ¡À20% of Reading(@10000-19000microns) |
| Working environment:? | 5¡ãC~40¡ãC (41¡ãF~104¡ãF) |
| Transmission distance:? | 30ft /10m |
| Limit vacuum:? | 15 micron |
| Pumping rate: | 7 CFM (3 L/S) |
| Motor power:? | 3/4 HP (550 W) |
| Fuel volume:? | 22 oz (650 ml) |
| Overall dimension:? | 18.5inx10.5inx14.8in (470mm*267mm*380mm) |
| Weight: | 34.2 lbs / 14.5 kg |
| Air inlet: | 1/4 SAE |
| User Manual:? | Download? |
Wireless HVAC Digital Manifold Gauge Set PT-500&PT-800:
| ?Measuring range:? | PT-500(0-500 psi); PT-800(0-800 psi) |
| Resolution: | 0.5psi |
| Accuary: | ¡À0.5%FS |
| U.M.: | psi,kg/cm2,cmHg,inHg,bar,kPa, Mpa |
| Memory capacity:? | 7000 readings |
| Power supply:? | 3AA batteries |
| In-use time:? | 600h |
| Max overload pressure: | 750psi;1000psi |
| Operating temperature:- | -17.8¡æ~60¡棨0¨H-140¨H£© |
| Fitting: | 1/8 NPT |
| Product size(IN): | 5*3*1.46 |
| Wireless transmission distance:? | 30m |
| User Manual? | Download? |
