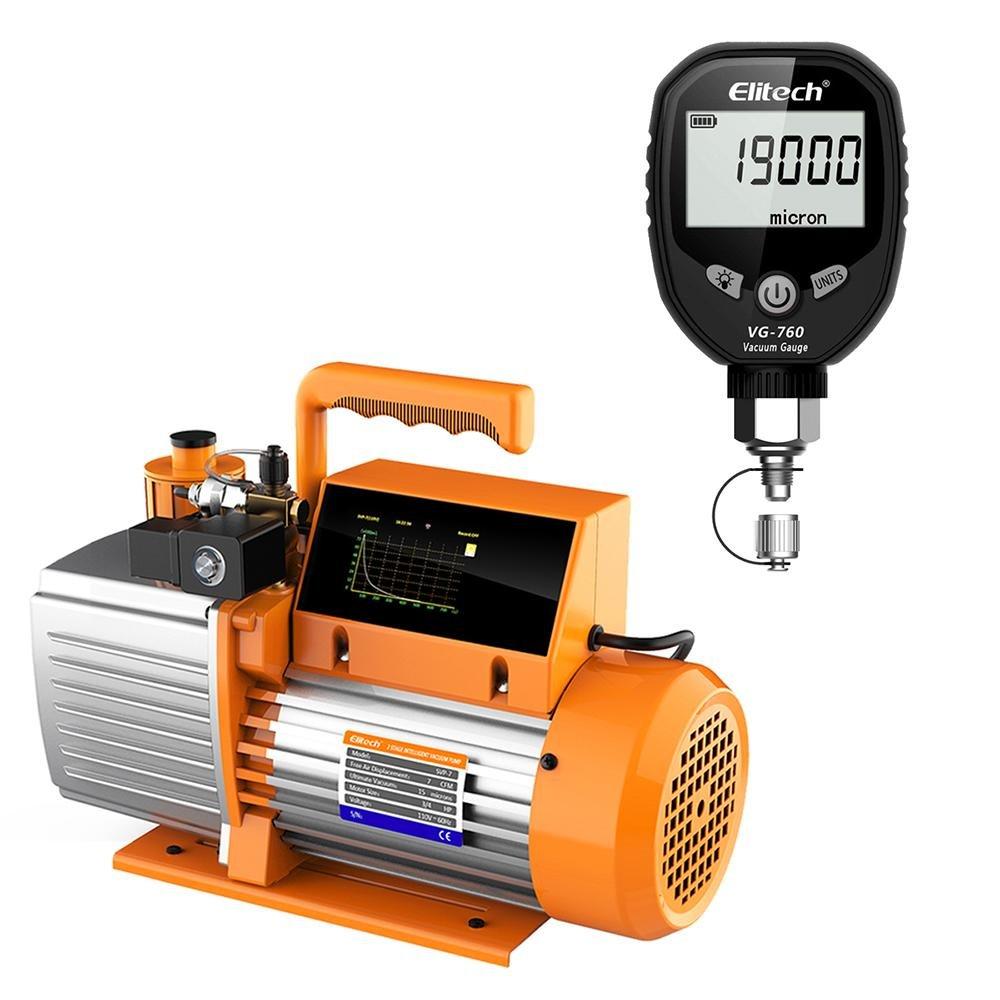

Elitech SVP-7 Vacuum Pump 7 CFM 2 Stage Intelligent HVAC VG-760 Digital Vacuum Gauge Micron Gauge for HVAC Elitech SVP-7 Vacuum Pump 7 CFM 2 Stage Intelligent HVAC VG-760 Digital Vacuum Gauge Micron Gauge for HVAC
Specifications

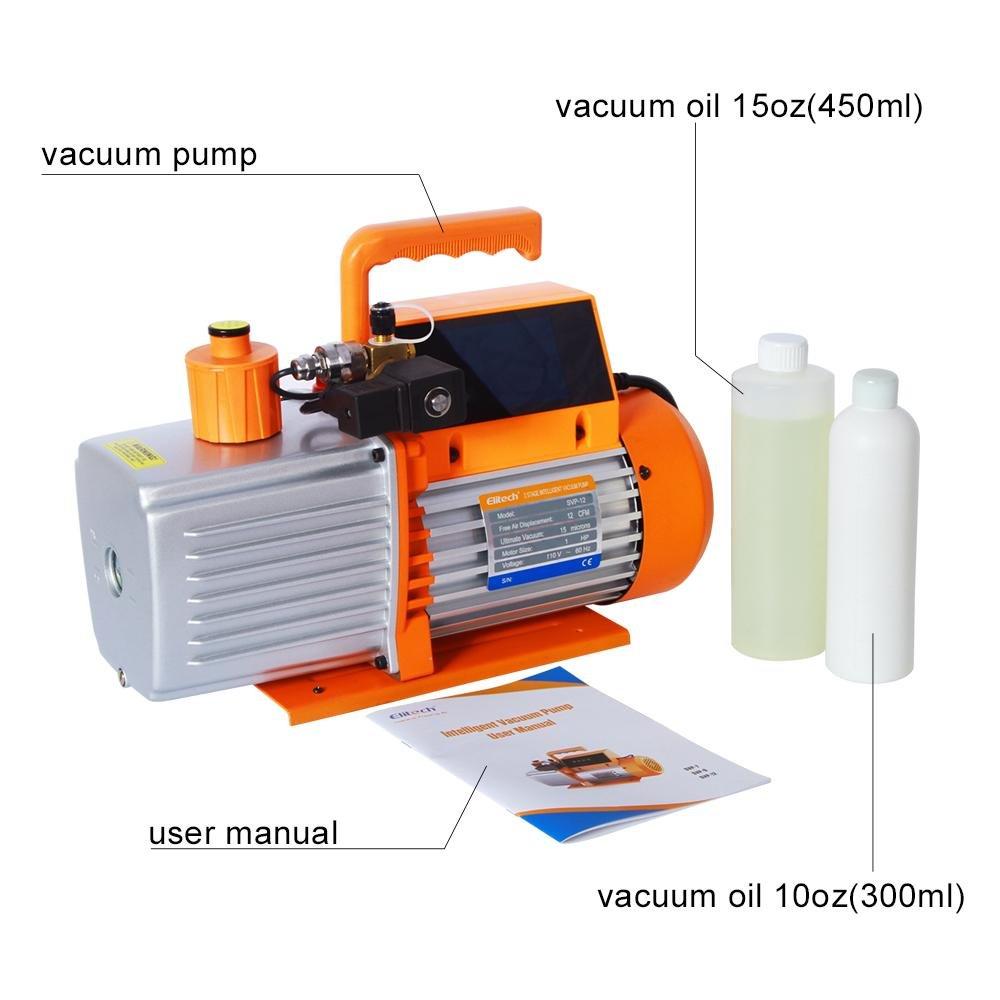

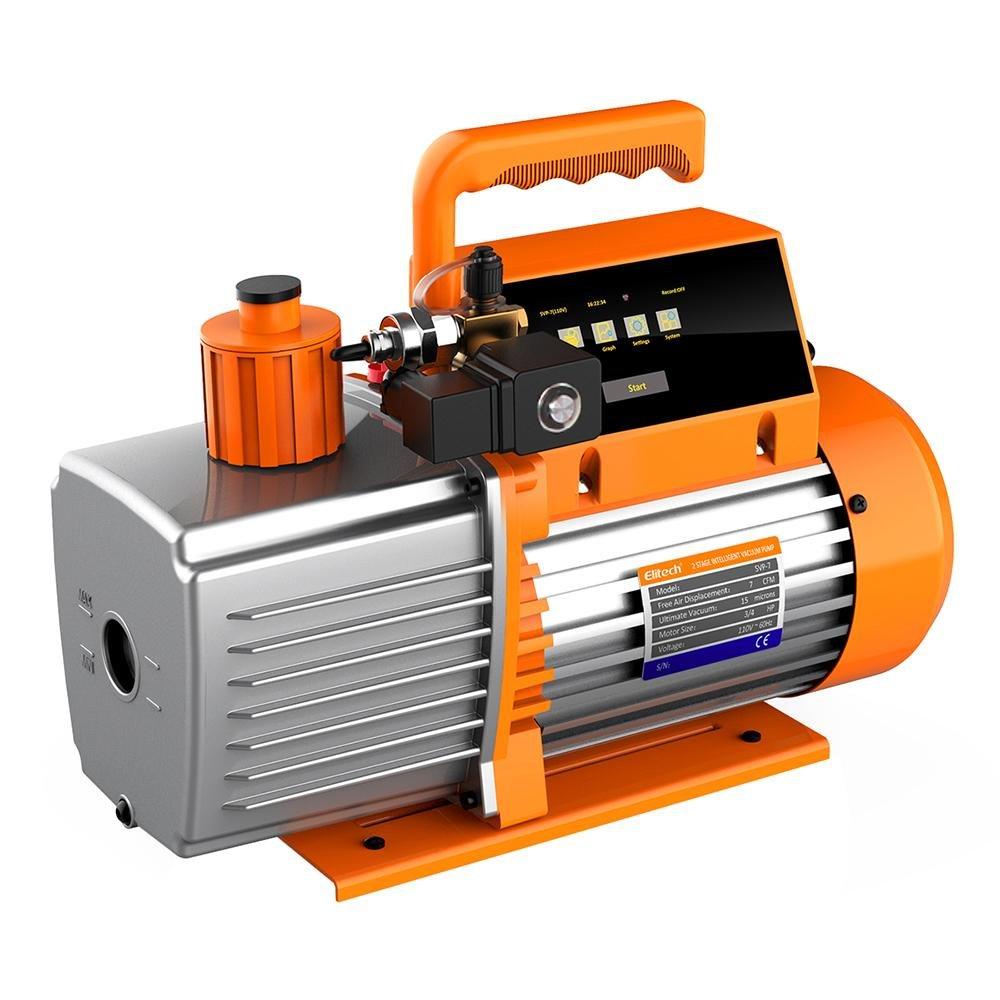

Vacuum Pump SVP-7 :
- Power supply:?110V/60HZ
- Motor:?AC Induction Motor
- Speed regualtion:?Fixed Speed
- Vacuum accuracy:?¡À10% of Reading / ¡À10 microns(@1-10000microns) ¡À20% of Reading(@10000-19000microns)
- Working environment:?5¡ãC~40¡ãC (41¡ãF~104¡ãF)
- Transmission distance:?30ft /10m
- Limit vacuum:?15 micron

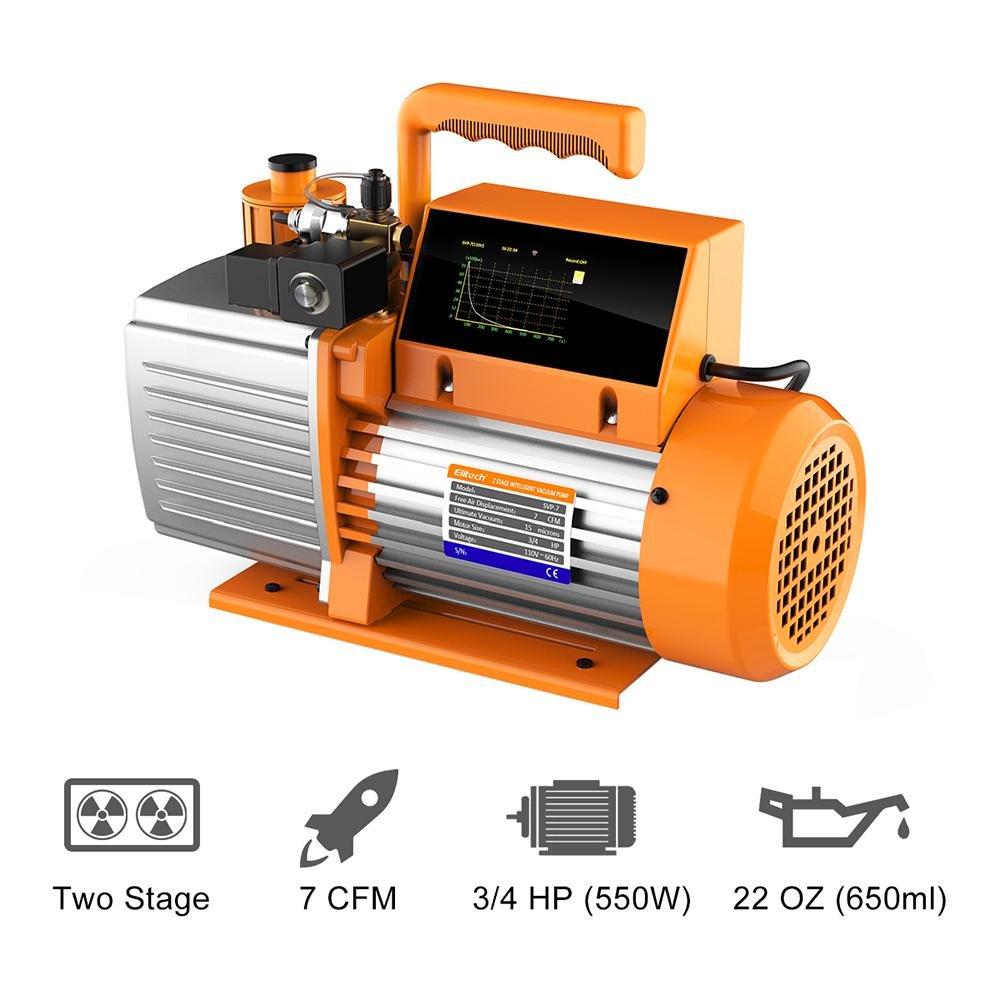

- Pumping rate:?7 CFM (3 L/S)
- Motor power:?3/4 HP (550 W)
- Fuel volume:?22 oz (650 ml)

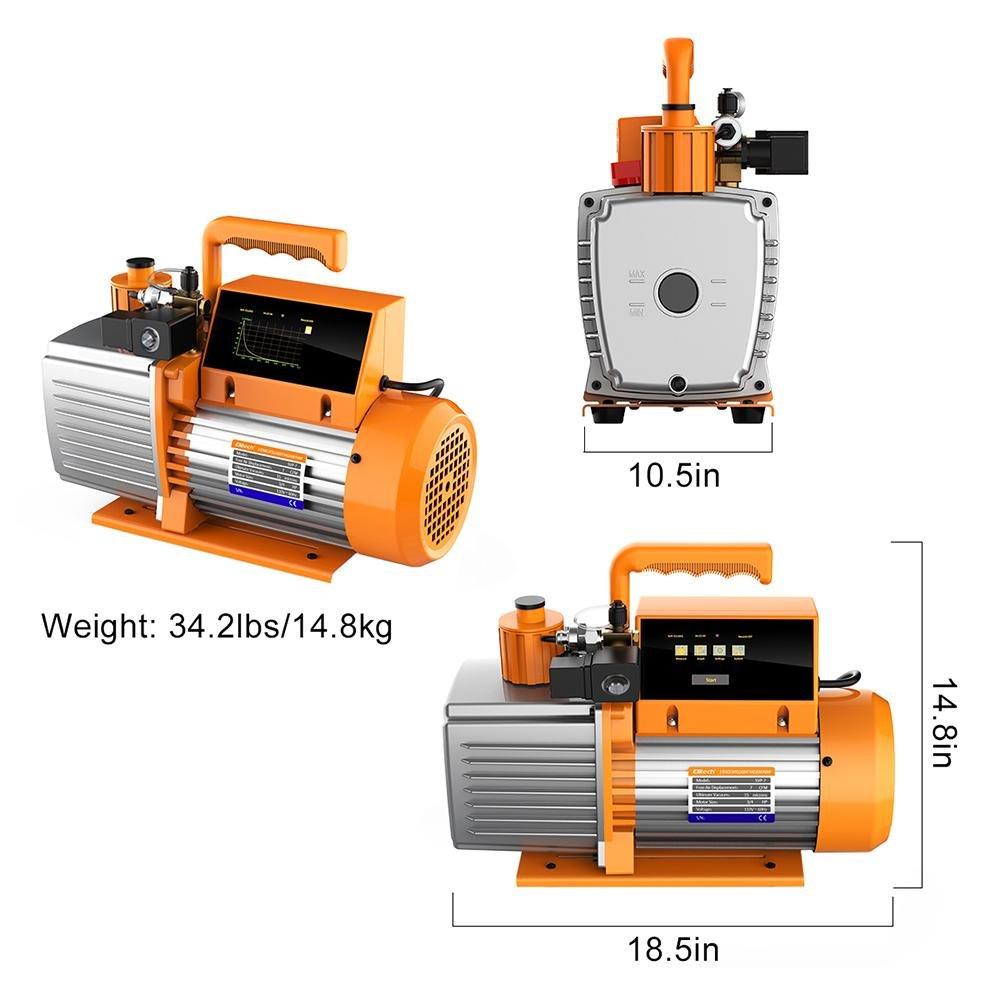

- Overall dimension:?18.5inx10.5inx14.8in (470mm*267mm*380mm)
- Weight:?34.2 lbs / 14.5 kg
- Air inlet:?1/4 SAE

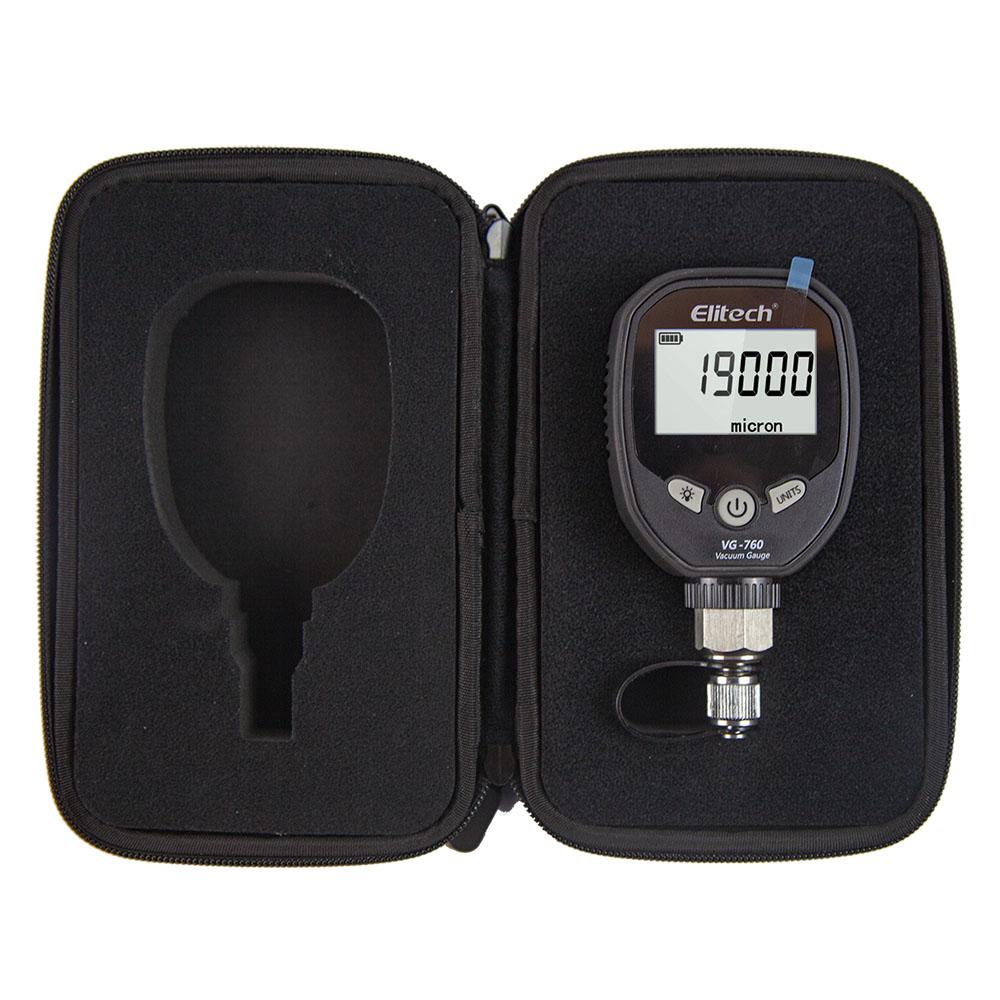

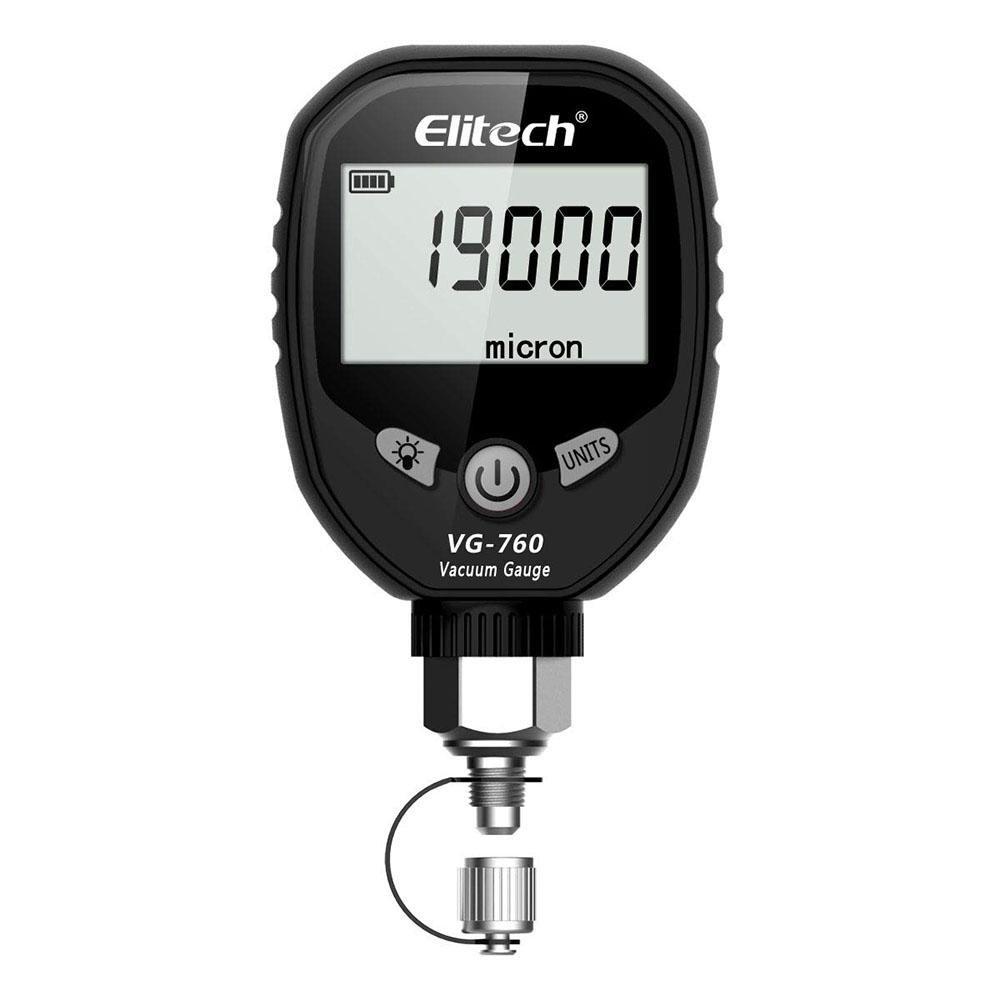

Digital Micron Vacuum Gauge VG-760:
- Measuring Range: 0-19000 micron
- Operating Temperature: 0¨H~140¨H(-178¡ãC~60¡ãC)
- Fitting: 1/4'' Male Flare

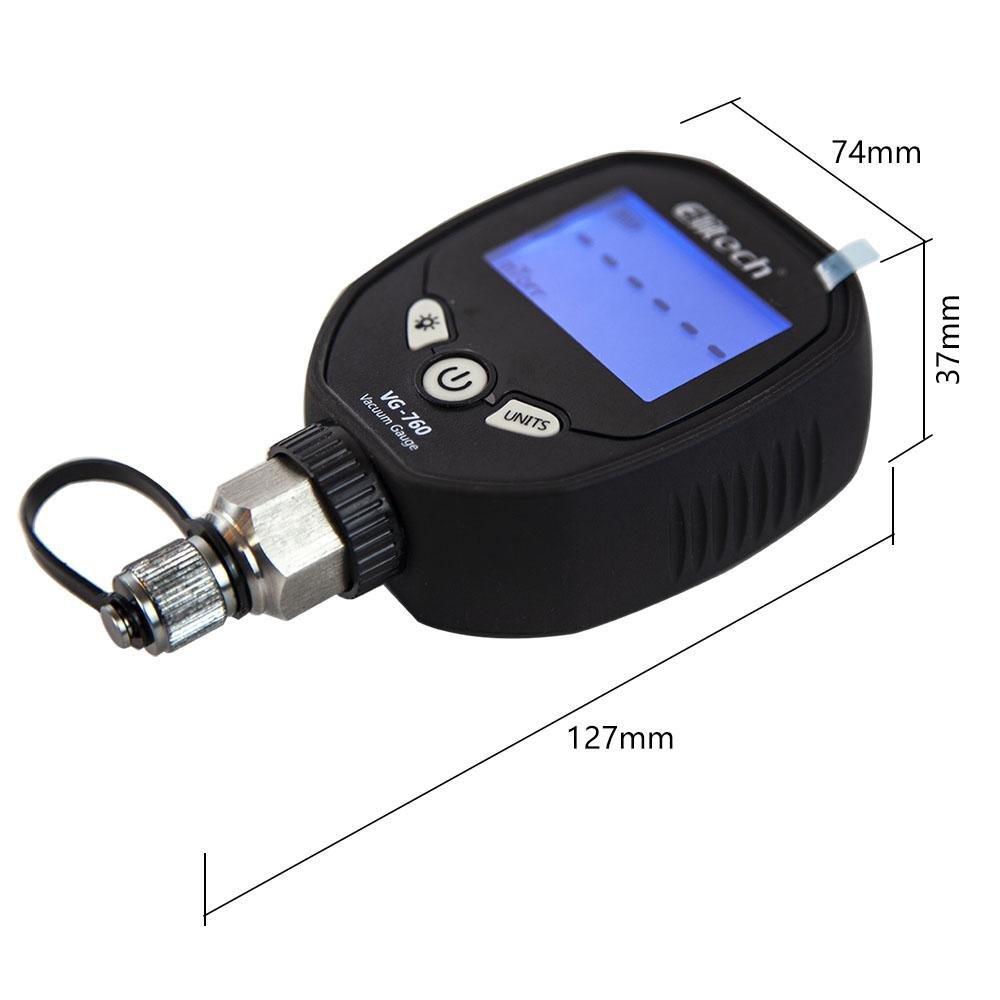

- Product Size: 5''*3''*1.5''(127x74x37 mm)
- Power Supply: 3 AA batteries, Battery Life: 300 hours
- Max Overpressure: 27.5 bar
- Accuracy: ¡À10% or ¡À10 Micron
- Resolution:0-400 1 Micron; 400-3000 10 Micron; 3000-10000 100 Micron; 10000-19000 250 Micron
Note: Please keep the pressure below 27.5 bar, otherwise the sensor may be damaged.
Specifications
Vacuum Pump SVP-7 :
- Power supply:?110V/60HZ
- Motor:?AC Induction Motor
- Speed regualtion:?Fixed Speed
- Vacuum accuracy:?¡À10% of Reading / ¡À10 microns(@1-10000microns) ¡À20% of Reading(@10000-19000microns)
- Working environment:?5¡ãC~40¡ãC (41¡ãF~104¡ãF)
- Transmission distance:?30ft /10m
- Limit vacuum:?15 micron
- Pumping rate:?7 CFM (3 L/S)
- Motor power:?3/4 HP (550 W)
- Fuel volume:?22 oz (650 ml)
- Overall dimension:?18.5inx10.5inx14.8in (470mm*267mm*380mm)
- Weight:?34.2 lbs / 14.5 kg
- Air inlet:?1/4 SAE
Digital Micron Vacuum Gauge VG-760:
- Measuring Range: 0-19000 micron
- Operating Temperature: 0¨H~140¨H(-178¡ãC~60¡ãC)
- Fitting: 1/4'' Male Flare
- Product Size: 5''*3''*1.5''(127x74x37 mm)
- Power Supply: 3 AA batteries, Battery Life: 300 hours
- Max Overpressure: 27.5 bar
- Accuracy: ¡À10% or ¡À10 Micron
- Resolution:0-400 1 Micron; 400-3000 10 Micron; 3000-10000 100 Micron; 10000-19000 250 Micron
Note: Please keep the pressure below 27.5 bar, otherwise the sensor may be damaged.
