Elitech STC-1000 110V Termostato Controlador de Temperatura Incubadora Aquário de Cadeia Fria Elitech STC-1000 110V Termostato Controlador de Temperatura Incubadora Aquário de Cadeia Fria
Em estoque
Termostato Controlador de Temperatura Elitech STC-1000 funções principais conforme abaixo: Alternar os modos entre frio e calor; Controle a temperatura definindo o valor de configuração da tempera...
Termostato Controlador de Temperatura Elitech STC-1000 funções principais conforme abaixo: Alternar os modos entre frio e calor; Controle a temperatura definindo o valor de configuração da temperatura e o valor da diferença; Calibração de temperatura; Proteção de atraso de saída de controle de refrigeração; Alarme quando a temperatura exceder o limite de temperatura ou quando ocorrer um erro do sensor.
Parâmetros técnicos:
- Faixa de medição de temperatura: -50 ℃ ~ 99 ℃;
- Resolução: 0,1 ℃;
- Precisão: ± 1 ℃ (-50 ℃ ~ 70 ℃);
- Atraso de erro do sensor: 1 minuto
- Fonte de alimentação: 110 VAC ± 10%, 50/60 Hz;
- Consumo de energia: menos de 3W;
- Sensor: sensor NTC (1PC);
- Capacidade de contato do relé: Resfriar 10A / 110VAC; Aquecer 10A / 110VAC;
- Temperatura ambiente: 0 ~ 60 ℃;
- Temperatura de armazenamento: -30 ~ 75 ℃;
- Umidade relativa: 20% ~ 85% (sem condensação)
?User manual: Download

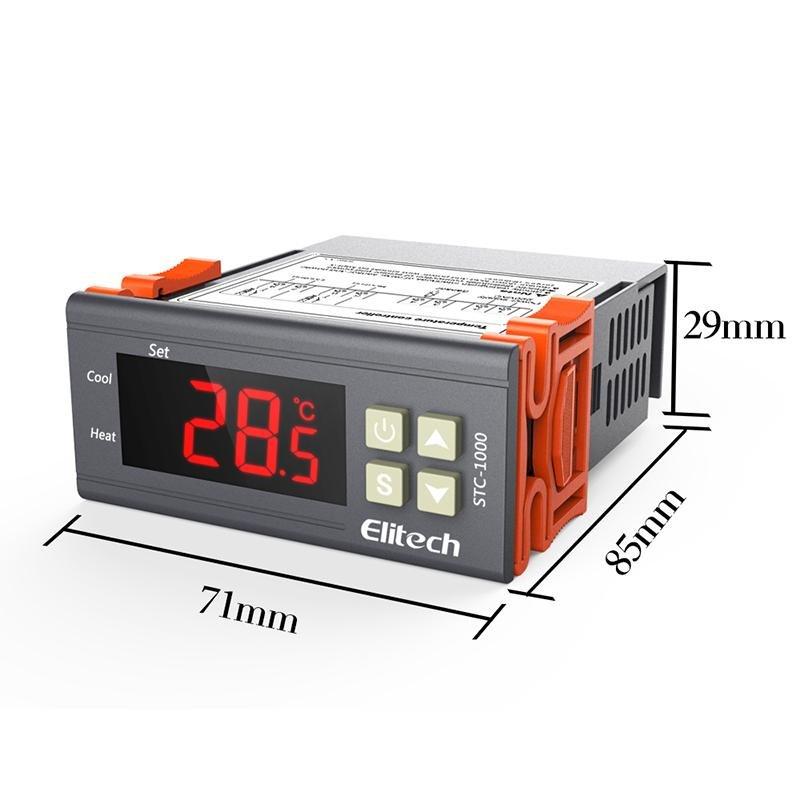

Specification and Size: ? ? ? ? ? ??
?1.Front panel size: 75(L)¡Á34.5(W)mm; ? ??
?2.Mounting size: 71(L)¡Á29(W)mm; ? ??
?3.Product size: 75(L)¡Á34.5(W)¡Á85(D)mm; ? ??
?4.sensor length 2 m included;
?5.Measure range: -50¡æ+99¡æ ? ?
?6.Mounting size: 71*29 mm
?7.Auto switch between refrigerating and heating? ?
8. Return difference value?
?
Package Content:?

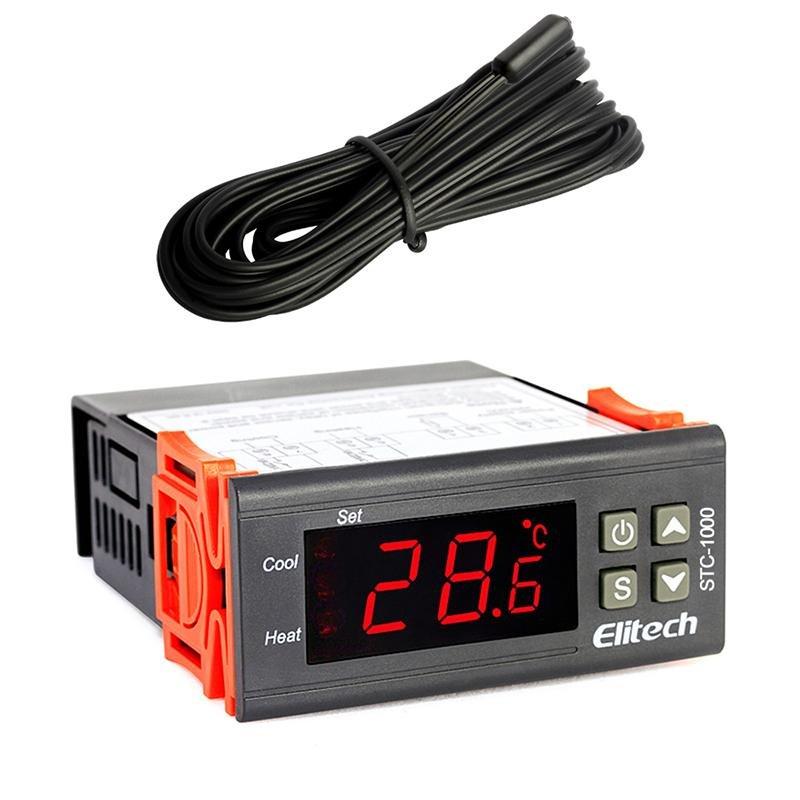

1 x STC-1000 Temperature controller 110v
1 x 2M Sensor
Note to check if the sensor is connected well, please be sure to connect the heating relay.
?
Wiring Diagram:
The unit is of a panel mount design and requires mounting in a suitable box. This unit is supplied with wiring diagram of how?to fix the main unit to your application systems. However, it is highly recommended to do the wiring connections by a qualified?technician.
Termostato Controlador de Temperatura Elitech STC-1000 funções principais conforme abaixo: Alternar os modos entre frio e calor; Controle a temperatura definindo o valor de configuração da temperatura e o valor da diferença; Calibração de temperatura; Proteção de atraso de saída de controle de refrigeração; Alarme quando a temperatura exceder o limite de temperatura ou quando ocorrer um erro do sensor.
Parâmetros técnicos:
- Faixa de medição de temperatura: -50 ℃ ~ 99 ℃;
- Resolução: 0,1 ℃;
- Precisão: ± 1 ℃ (-50 ℃ ~ 70 ℃);
- Atraso de erro do sensor: 1 minuto
- Fonte de alimentação: 110 VAC ± 10%, 50/60 Hz;
- Consumo de energia: menos de 3W;
- Sensor: sensor NTC (1PC);
- Capacidade de contato do relé: Resfriar 10A / 110VAC; Aquecer 10A / 110VAC;
- Temperatura ambiente: 0 ~ 60 ℃;
- Temperatura de armazenamento: -30 ~ 75 ℃;
- Umidade relativa: 20% ~ 85% (sem condensação)
?User manual: Download
Specification and Size: ? ? ? ? ? ??
?1.Front panel size: 75(L)¡Á34.5(W)mm; ? ??
?2.Mounting size: 71(L)¡Á29(W)mm; ? ??
?3.Product size: 75(L)¡Á34.5(W)¡Á85(D)mm; ? ??
?4.sensor length 2 m included;
?5.Measure range: -50¡æ+99¡æ ? ?
?6.Mounting size: 71*29 mm
?7.Auto switch between refrigerating and heating? ?
8. Return difference value?
?
Package Content:?
1 x STC-1000 Temperature controller 110v
1 x 2M Sensor
Note to check if the sensor is connected well, please be sure to connect the heating relay.
?
Wiring Diagram:
The unit is of a panel mount design and requires mounting in a suitable box. This unit is supplied with wiring diagram of how?to fix the main unit to your application systems. However, it is highly recommended to do the wiring connections by a qualified?technician.
