EK-3030E 110V - Elitech Sistema de controle termostático controlador de temperatura EK-3030E 110V - Elitech Sistema de controle termostático controlador de temperatura

Em estoque
O controlador de temperatura Elitech EK-3030E 110V é um controlador de temperatura de comunicação inteligente usado para controlar a temperatura de armazenamento a frio e dispositivos de aqueciment...
R$ 157,71
R$ 157,71

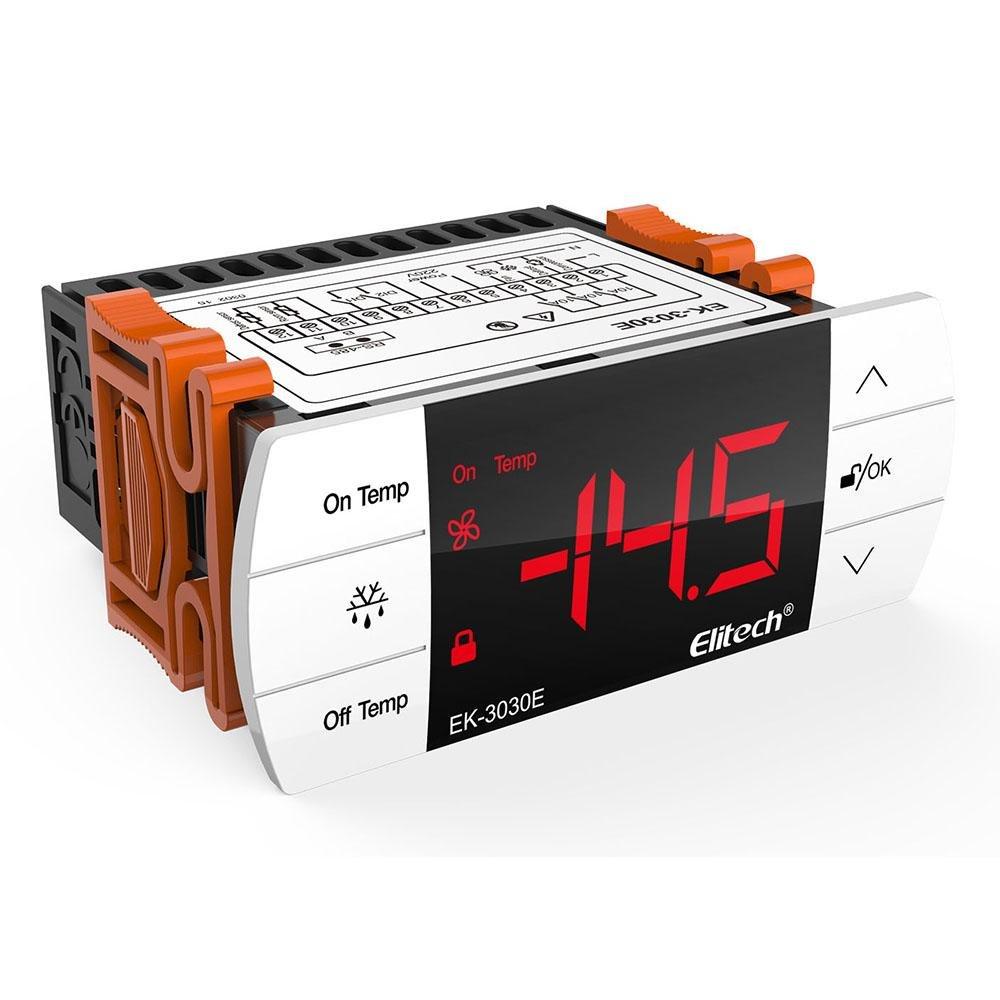

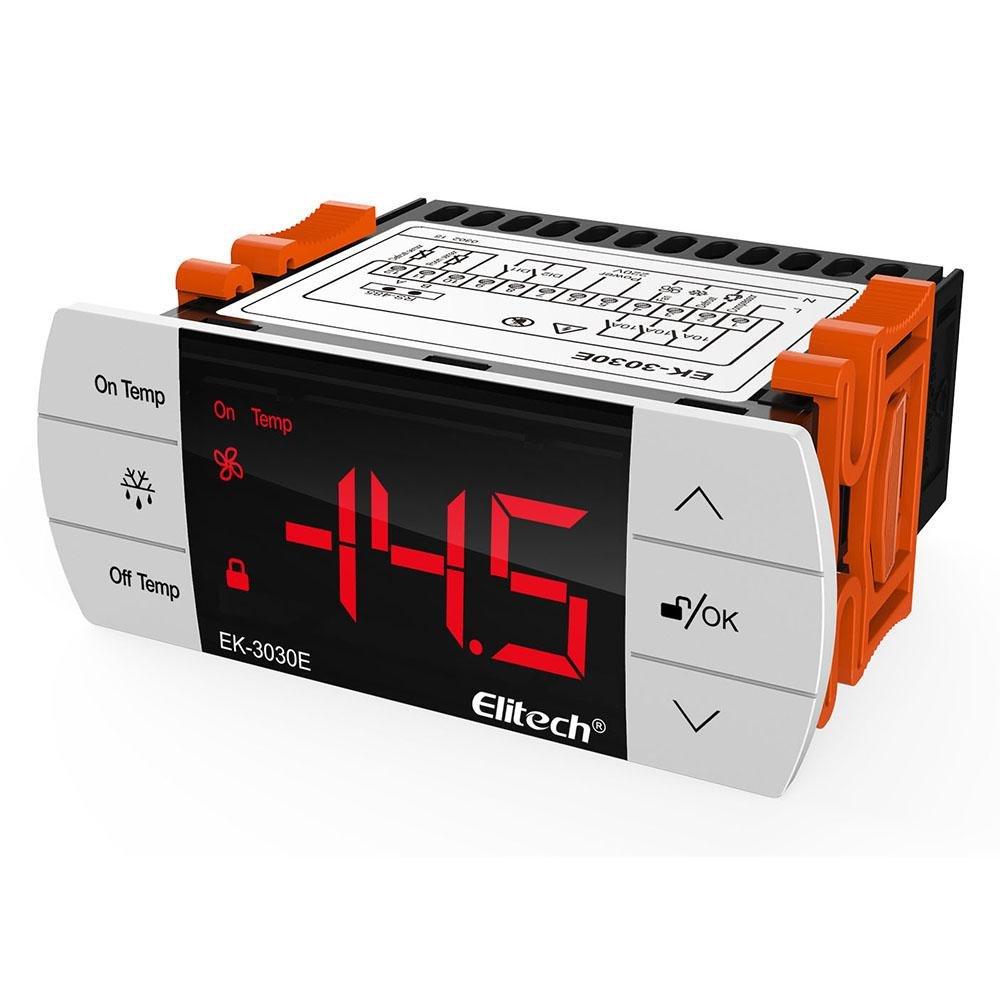

O controlador de temperatura Elitech EK-3030E 110V é um controlador de temperatura de comunicação inteligente usado para controlar a temperatura de armazenamento a frio e dispositivos de aquecimento. Pode ser conectado à internet como terminal de controle e controlar e definir parâmetros remotamente.
Tem como funções: medir, exibir e controlar a temperatura; calibração de temperatura; descongelação forçada; alarme de temperatura excessiva e alarme de falha do sensor; uma configuração chave de recuperação de fábrica, parâmetros predefinidos; função de bloqueio de tecla, entrada digital de dupla via, função de senha de engenharia.
O protocolo de comunicação adota o protocolo MUDBUS, interface serial TTL. A placa adaptadora de comunicação é opcional para converter a interface de comunicação 485.
Entrada do sensor de duas vias: sensor de temperatura do gabinete e sensor de degelo. Duas entradas digitais.
Saída de controle de três vias: Saída de refrigeração / aquecimento, degelo e ventilador.

Parâmetros técnicos:
1) Measuring range: -40℃~99℃
2) Controlling range: -40℃~85℃;
3) Accuracy: -30℃~50℃, ±1℃±0.5dig; others, ±2℃±0.5dig
4) Resolution: 0.1℃
5) Mounting size: 71mm*29mm
6) Power supply: 110±10%(VAC), 50/60Hz
7) Power consumption:
8) Output capacity:
Refrigeration: 10A/110VAC or 16A/110VAC, directly drive a single phase compressor 1HP
Defrost: 10A/110VAC
Fan: 10A/110VAC One way buzzer alarm output
9) Work ambient temperature: -5℃~60℃; work ambient humidity: 10%~90% non condensing
10) Storage temperature: -25℃~75℃
11) Senor type: NTC(10KΩ/25℃, B value 3435K)

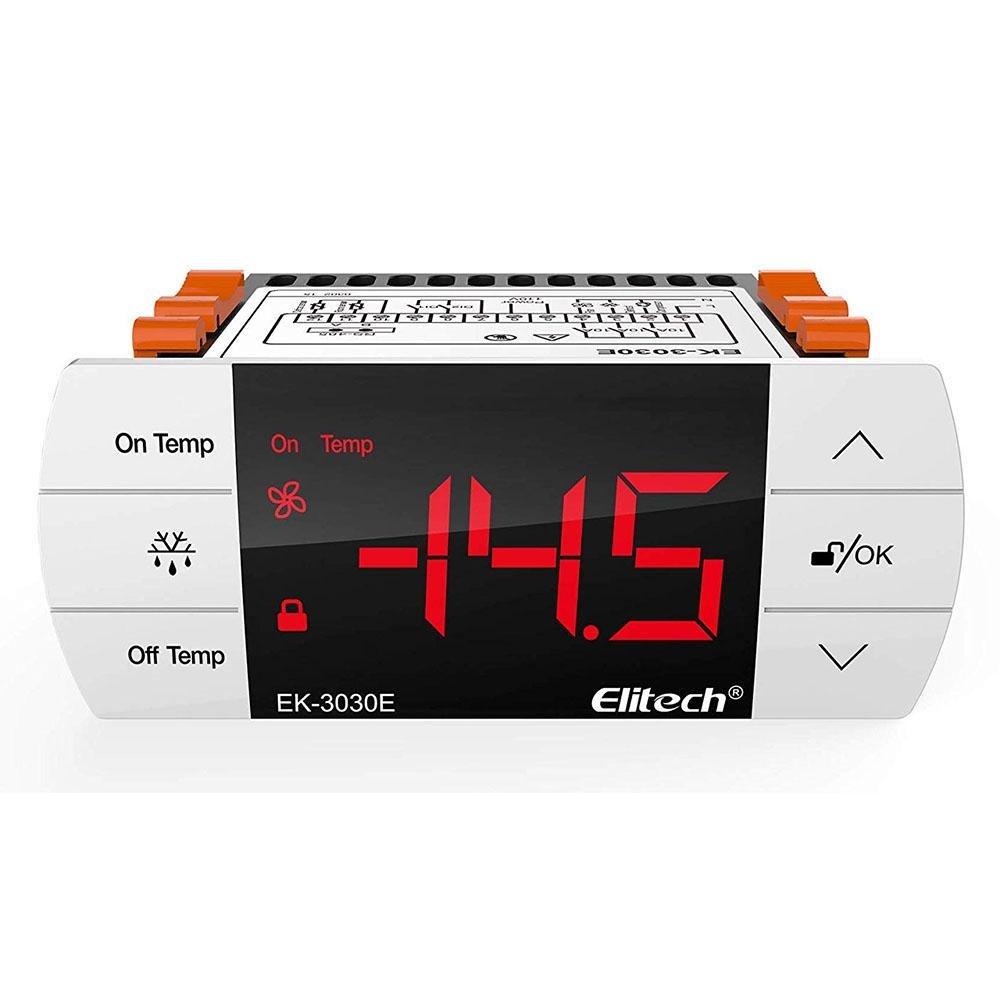

O painel de exibição pode exibir três dígitos, dois indicadores de status (bloqueio de tecla e ventilador), quatro descritores de parâmetros (temp on, temp off, def cycle, def time);
O controlador será bloqueado automaticamente, quando ocioso por 30 segundos.

Manual do usuário: Download
O controlador de temperatura Elitech EK-3030E 110V é um controlador de temperatura de comunicação inteligente usado para controlar a temperatura de armazenamento a frio e dispositivos de aquecimento. Pode ser conectado à internet como terminal de controle e controlar e definir parâmetros remotamente.
Tem como funções: medir, exibir e controlar a temperatura; calibração de temperatura; descongelação forçada; alarme de temperatura excessiva e alarme de falha do sensor; uma configuração chave de recuperação de fábrica, parâmetros predefinidos; função de bloqueio de tecla, entrada digital de dupla via, função de senha de engenharia.
O protocolo de comunicação adota o protocolo MUDBUS, interface serial TTL. A placa adaptadora de comunicação é opcional para converter a interface de comunicação 485.
Entrada do sensor de duas vias: sensor de temperatura do gabinete e sensor de degelo. Duas entradas digitais.
Saída de controle de três vias: Saída de refrigeração / aquecimento, degelo e ventilador.

Parâmetros técnicos:
1) Measuring range: -40℃~99℃
2) Controlling range: -40℃~85℃;
3) Accuracy: -30℃~50℃, ±1℃±0.5dig; others, ±2℃±0.5dig
4) Resolution: 0.1℃
5) Mounting size: 71mm*29mm
6) Power supply: 110±10%(VAC), 50/60Hz
7) Power consumption:
8) Output capacity:
Refrigeration: 10A/110VAC or 16A/110VAC, directly drive a single phase compressor 1HP
Defrost: 10A/110VAC
Fan: 10A/110VAC One way buzzer alarm output
9) Work ambient temperature: -5℃~60℃; work ambient humidity: 10%~90% non condensing
10) Storage temperature: -25℃~75℃
11) Senor type: NTC(10KΩ/25℃, B value 3435K)

O painel de exibição pode exibir três dígitos, dois indicadores de status (bloqueio de tecla e ventilador), quatro descritores de parâmetros (temp on, temp off, def cycle, def time);
O controlador será bloqueado automaticamente, quando ocioso por 30 segundos.

Manual do usuário: Download
